Hyundai Venue: Braking System / Parking Brake
Always set the parking brake before leaving the vehicle. To apply the parking
brake:

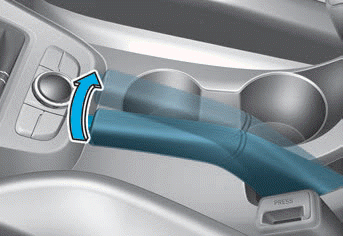

Firmly depress the brake pedal. Pull up the parking brake lever as far as possible.
WARNING
To reduce the risk of SERIOUS INJURY or DEATH, do not operate the parking
brake while the vehicle is moving except in an emergency situation. It could damage
the brake system and lead to an accident.
To release:
Firmly depress the brake pedal.

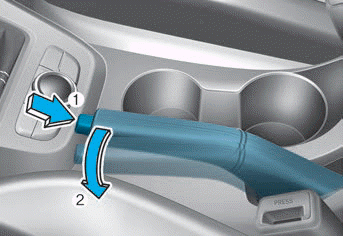

While pressing the release button (1), slightly pull up on the parking brake
lever then lower the parking brake lever (2).
If the parking brake does not release or does not release all the way, have your
vehicle checked by an authorized HYUNDAI dealer.
WARNING
- Whenever leaving the vehicle or parking, always come to a complete stop
and continue to depress the brake pedal. Move the shift lever into P (Park)
position, then apply the parking brake, and place the ignition switch in the
LOCK/OFF position. Vehicles with the parking brake not fully engaged are at
risk for moving inadvertently and causing injury to yourself or others.
- When parking on an incline, block the wheels to prevent the vehicle from
rolling down.
- NEVER allow anyone who is unfamiliar with the vehicle to touch the parking
brake. If the parking brake is released unintentionally, serious injury may
occur.
- Only release the parking brake when you are seated inside the vehicle
with your foot firmly on the brake pedal.
NOTICE
- Do not apply the accelerator pedal while the parking brake is engaged.
If you depress the accelerator pedal with the parking brake engaged, a warning
will sound. Damage to the parking brake may occur.
- Driving with the parking brake on can overheat the braking system and
cause premature wear or damage to brake parts. Make sure the parking brake is
released and the Brake Warning Light is off before driving.
Check the Parking Brake Warning Light by placing the ignition switch to the ON
position (do not start the engine).
This light will be illuminated when the parking brake is applied with the ignition
switch in the START or ON position.
Before driving, be sure the parking brake is released and the Brake Warning Light
is OFF.
If the Parking Brake Warning Light remains on after the parking brake is released
while engine is running, there may be a malfunction in the brake system. Immediate
attention is necessary.
If at all possible, cease driving the vehicle immediately. If that is not possible,
use extreme caution while operating the vehicle and only continue to drive the vehicle
until you can reach a safe location.
Power Brakes
Your vehicle has power-assisted brakes that adjust automatically through normal
usage.
If the engine is not running or is turned off while driving, the power assist
for the brakes will not work...
WARNING
An Anti-Lock Braking System (ABS) or an Electronic Stability Control (ESC)
system will not prevent accidents due to improper or dangerous driving maneuvers...
