Hyundai Venue: Cylinder Block / Piston and Connecting Rod. Components and components location
Hyundai Venue (QX) (2020-2025) Service Manual / Engine Mechanical System / Cylinder Block / Piston and Connecting Rod. Components and components location

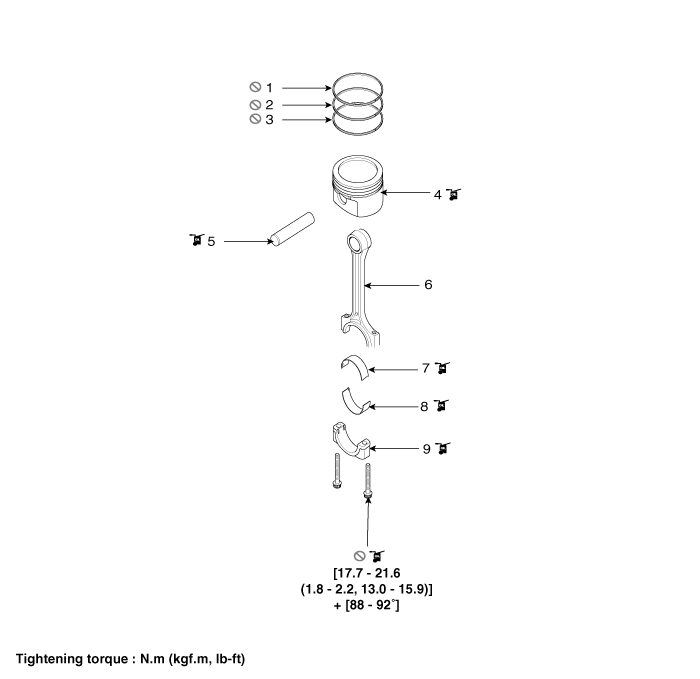

| Components |
| 1. Piston ring (#1) 2. Piston ring (#2) 3. Oil ring 4. Piston 5. Piston pin |
6. Connecting rod 7. Connecting rod upper bearing 8. Connecting rod lower bearing 9. Connecting rod bearing cap |
Piston and Connecting Rod. Repair procedures
Disassembly
•
Use fender covers to avoid damaging painted surfaces...
