Hyundai Venue: Power Windows / Power Window Switch. Repair procedures

Hyundai Venue (QX) (2020-2023) Service Manual / Body Electrical System / Power Windows / Power Window Switch. Repair procedures

Diagnosis with GDS
Diagnosis with GDS
1.
In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (GDS).
The diagnostic system (GDS) provides the following information.
(1)
Fault Code Searching : Checking failure and code number (DTC)
(2)
Data Analysis : Checking the system input/output data state
(3)
Actuation test : Checking the system operation condition
(4)
S/W Management : Controlling other features including system option setting and zero point adjustment
2.

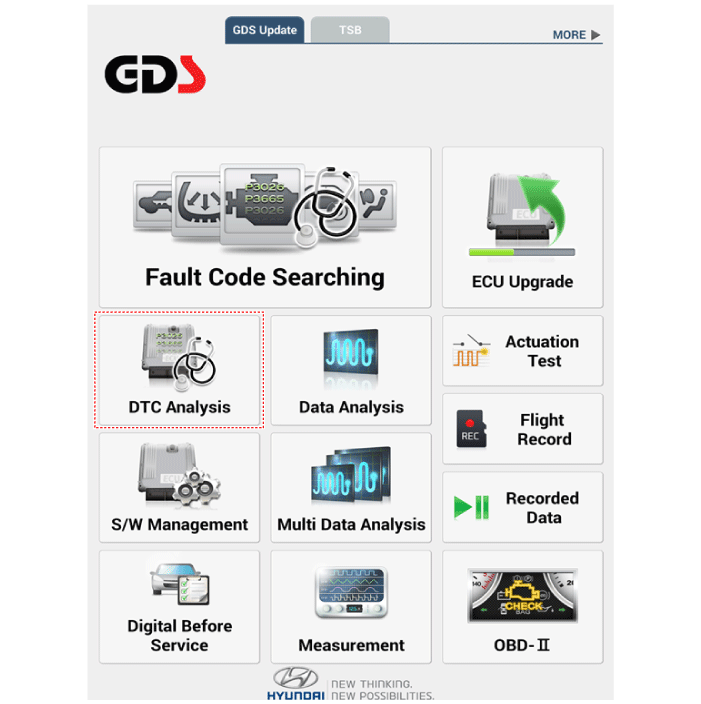

If diagnose the vehicle by GDS, select "DTC Analysis" and "Vehicle".

Hyundai Venue. Power Window Switch. Repair procedures

3.

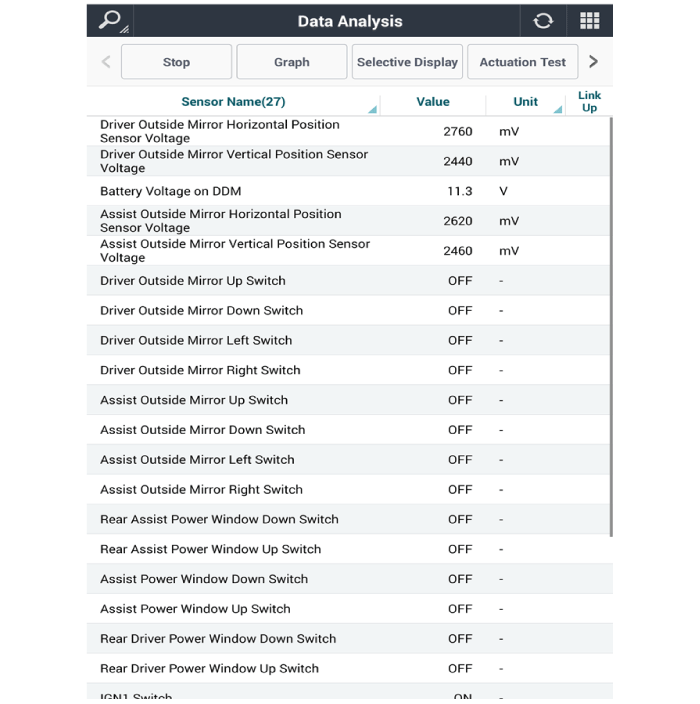

Select the 'Data Analysis' and 'Car model'.

Hyundai Venue. Power Window Switch. Repair procedures

4.

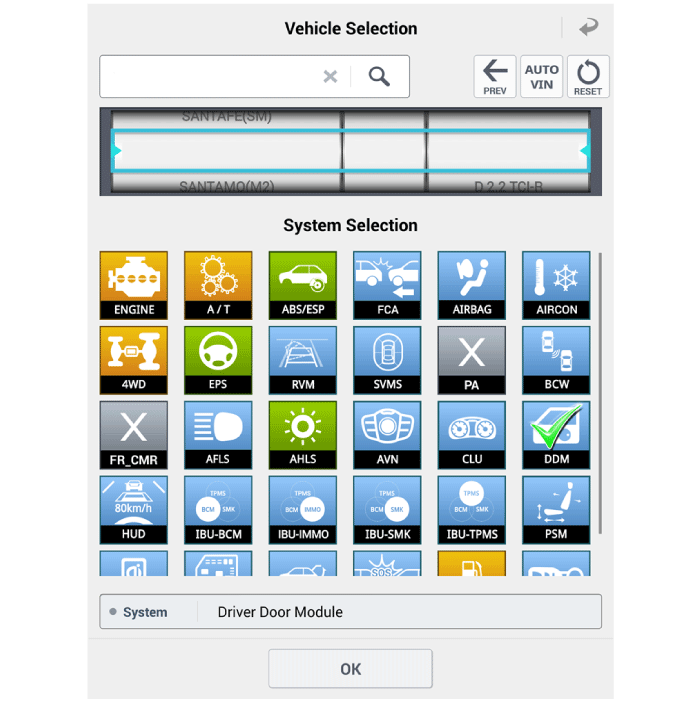

Select the 'DDM' to search the current state of the input/output data.

Hyundai Venue. Power Window Switch. Repair procedures

Hyundai Venue. Power Window Switch. Repair procedures

5.

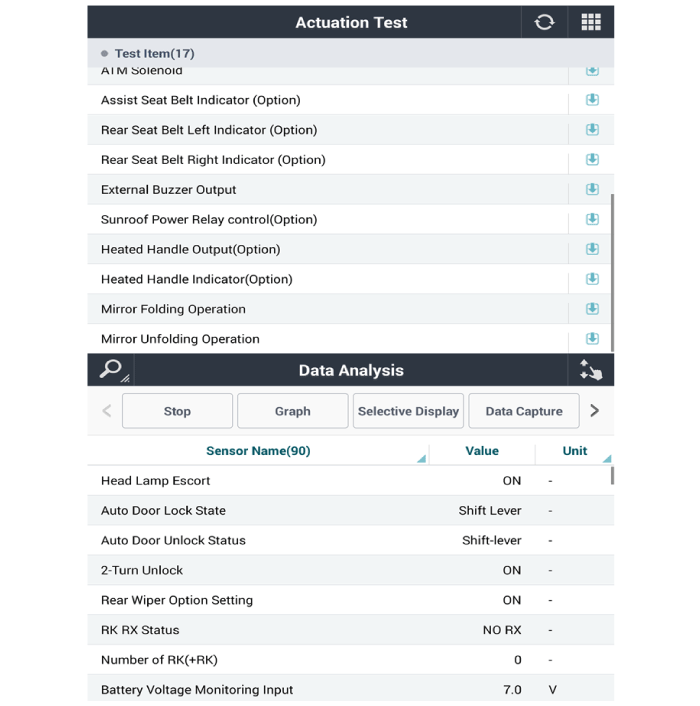

To forcibly actuate the input value of the module to be checked, select option 'Actuation Test'.

Hyundai Venue. Power Window Switch. Repair procedures

Removal
Driver/Assist Power Window Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
3.

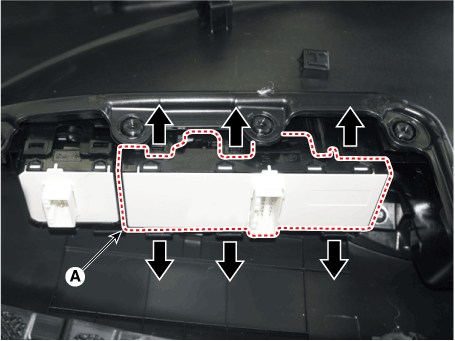

Remove the power window switch assembly (A) by pulling out both ends of the switch holders.
[Driver]

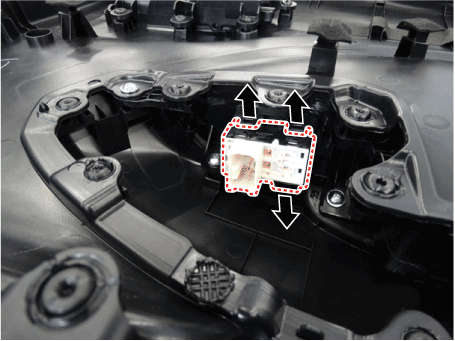

Hyundai Venue. Power Window Switch. Repair procedures

[Assist]

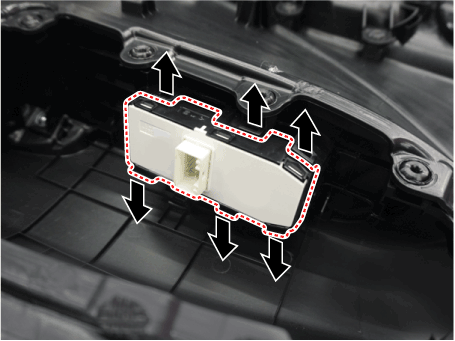

Hyundai Venue. Power Window Switch. Repair procedures

Rear Power Window Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear door trim.
(Refer to Body - "Rear Door Trim")
3.
Remove the power window switch assembly by pulling out both ends of the switch holders.

Hyundai Venue. Power Window Switch. Repair procedures

Installation
Driver/Assist Power Window Switch
1.
Install the power window switch assembly.
2.
Install the front door trim after connecting the connector.
3.
Connect the negative (-) battery terminal.
Rear Power Window Switch
1.
Install the power window switch assembly.
2.
Install the rear door trim after connecting the connector.
3.
Connect the negative (-) battery terminal.

    Power Window Switch. Schematic diagrams

    ..

    Sun Roof

    ..
