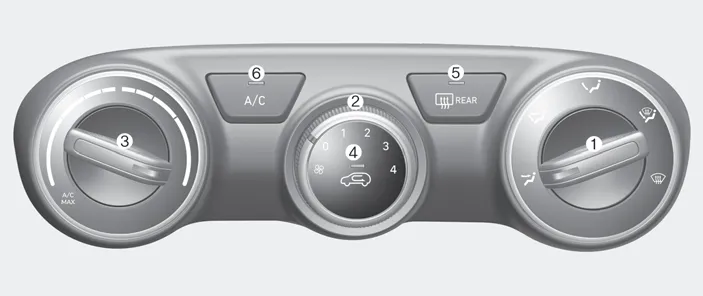

Hyundai Venue (QX): Convenient Features / Manual Climate Control System
1. Mode selection knob
2. Fan speed control knob
3. Temperature control knob
4. Air intake control button (recirculated air position or outside (fresh) air position)
5. Rear window defroster button (if equipped)
6. A/C (Air conditioning) button
The Rear View Monitor will activate when the engine is running and the shift lever is in the R (Reverse) position. This is a supplemental system that helps provide a view of the area behind the vehicle through the audio display while the vehicle is in the R (Reverse) position.
1. Start the engine. 2. Set the mode to the desired position. To improve the effectiveness of heating and cooling, select the mode according to the following: -- Heating: -- Cooling: 3.
Other information:
Hyundai Venue (QX) (2020-2026) Service Manual: Heater Unit. Components and components location
Component Location 1. Heater unit assembly Compoents 1. Mode control actuator 2. Heater core case 3. Center duct seal 4. PTC heater 5. Heater core assembly 6. Heater case [LH] 7.
Hyundai Venue (QX) (2020-2026) Service Manual: Temperature Control Actuator. Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the temperature control actuator connector. 3. Verify that the temperature control actuator operates to the cool position when connecting 12V to terminal 3 and grounding terminal 7.
