Hyundai Venue (QX): Air Bag - Advanced Supplemental Restraint System / Occupant Classification System (OCS)

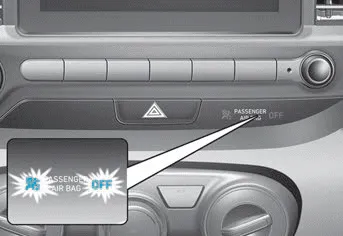

Your vehicle is equipped with an Occupant Classification System (OCS) in the front passenger’s seat.
- Main components of the Occupant Classification System
- Do Not Install a Child Restraint in the Front Passenger’s Seat
After a frontal or side air bag inflates, it will deflate very quickly. Air bag inflation will not prevent the driver from seeing out of the windshield or being able to steer.
A detection device located within the front passenger seat cushion. Electronic system to determine whether the passenger air bag systems should be activated or deactivated.
