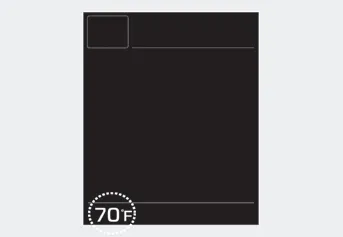

This gauge indicates the current outside air temperature by 1°F (1°C).
-- Temperature range: -40°F ~ 140°F (40°C ~ 60°C)
Note that the temperature indicated on the LCD display may not change as quickly as the outside temperature (there may be a slight delay before the temperature changes.)
You can change the temperature unit from °F to °C or °C to °F in the User Settings mode in the cluster:
-- Go to User Settings Mode → Other → Temperature Unit.
For vehicles equipped with Automatic Climate Control, you can also:
-- Press and hold the AUTO and OFF buttons on the climate control unit for 3 seconds
Both the temperature unit on the cluster LCD display and climate control screen will change.
This gauge indicates the approximate amount of fuel remaining in the fuel tank. Information The fuel tank capacity is given in chapter 2. The fuel gauge is supplemented by a low fuel warning light, which will illuminate when the fuel tank is nearly empty.
Odometer The odometer indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance should be performed.
