Hyundai Venue (QX): Wipers and Washers / Rear Window Wiper and Washer

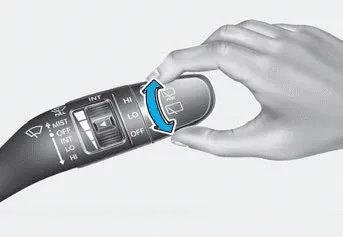

The rear window wiper and washer switch is located at the end of the wiper and washer switch lever. Turn the switch to the desired position to operate the rear wiper and washer.
HI – High wiper speed
LO – Low wiper speed
OFF – Off

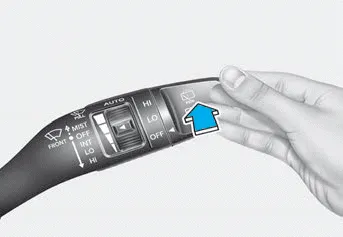

Push the lever away from you to spray rear washer fluid and to run the rear wipers 1~3 cycles. The spray and wiper operation will continue until you release the lever.
Auto rear wiper
The rear wiper will operate while the vehicle is in reverse with the front wiper ON by selecting the function on the LCD display.
Go to ‘User Settings → Convenience → Auto Rear Wiper (in R)’.
In the OFF position, pull the lever gently toward you to spray washer fluid on the windshield and to run the wipers 1-3 cycles. The spray and wiper operation will continue until you release the lever.
The Rear View Monitor will activate when the engine is running and the shift lever is in the R (Reverse) position. This is a supplemental system that helps provide a view of the area behind the vehicle through the audio display while the vehicle is in the R (Reverse) position.
