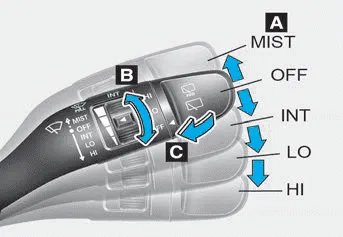

Front windshield wiper/washer

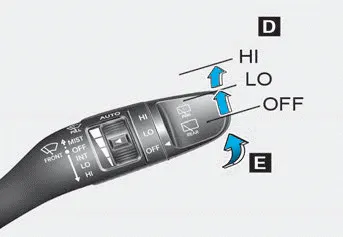

Rear windshield wiper/washer
A. Wiper speed control
B. Intermittent control wipe time adjustment
C. Wash with brief wipes (pull lever towards you)
D. Rear wiper/washer control
E. Wash with brief wipes (rear) (push lever away from you)
Push the switch to turn the light on or off. : The lamp will turn on if this button is pressed. : The lamp will turn off if this button is pressed.
Operates as follows when the ignition switch is in the ON position. MIST: For a single wiping cycle, push the lever upward and release. The wipers will operate continuously if the lever is held in this position.
