Hyundai Venue (QX): Rear Cross-Traffic Collision Warning (RCCW) / System Setting and Operation

System setting

• The driver can activate the system by placing the ignition switch to the ON position and by selecting “User Settings → Driver Assistance → Parking Safety → Rear Cross-Traffic Safety”. RCCW turns on when ‘Rear Cross- Traffic safety’ is selected.
• When the engine is turned off then on again, the system will be activated.
• When the system is initially turned on and when the engine is turned off then on again, the warning light will illuminate for 3 seconds on the outside rearview mirror.

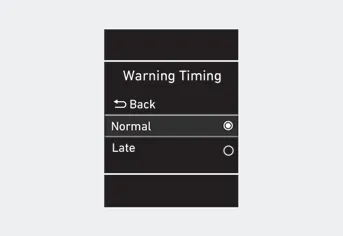

• Setting Warning Timing

The driver can select the initial warning activation time in the User Settings in the LCD display by selecting ‘User Settings → Driver Assistance → Warning Timing’.

The options for initial Rear Cross-Traffic Collision Warning includes the following:

-- Normal:

When this condition is selected, initial Rear Cross-Traffic Collision Warning is activated normally. If this setting feels sensitive, change the option to ‘Late’.

The warning activation time may feel late if a vehicle at the side or rear abruptly accelerates.

-- Late:

Select this warning activation time when driving at a low speed or when Normal feels too sensitive.

Information

If you change the warning timing, the warning time of other systems may change. Always be aware before changing the warning timing.

The driver can select the warning volume of Rear Cross-Traffic Collision Warning by selecting ‘User Settings → Driver Assistance → Warning Volume → High/ Medium/Low’.

Information

If you change the warning volume, the warning volume of other systems may change. Always be aware before changing the warning volume.

Operating conditions

To operate:

Go to the “User Settings → Driver assistance → Parking Safety → Rear Cross-Traffic Safety”. on the LCD display. The system will turn on and standby to activate.

The system will activate when vehicle speed is below 7 MPH (10 km/h) and with the shift lever in R (Reverse).

ÃÃ The system will not activate when the vehicle speed exceeds 7 MPH (10 km/h). The system will activate again when the speed is below 5 MPH (8 km/h).

The system’s detecting range is approximately 1 ~ 65 ft (0.5 ~ 20 m). An approaching vehicle will be detected if their vehicle speed is within 5 ~ 22.5 MPH (8 ~ 36 km/h).

Note that the detecting range and operating speed may vary under certain conditions. As always, use caution and pay close attention to your surroundings when backing up your vehicle.
