Hyundai Venue: Rear Seat Belt / Rear Center Seat Belt Retractor. Repair procedures

Hyundai Venue (QX) (2020-2023) Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Center Seat Belt Retractor. Repair procedures

Replacement
1.
Remove the rear seat back cover [LH].
(Refer to Rear Seat - "Rear Seat Back Cover")
2.

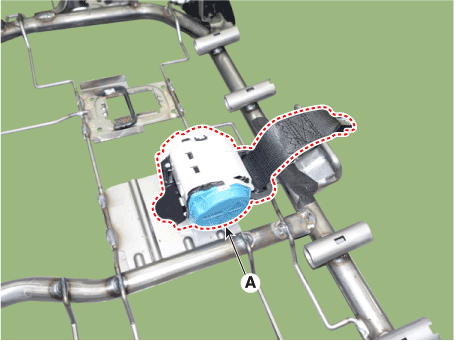

Loosen the mounting nuts and remove the rear center seat belt retractor (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

Hyundai Venue. Rear Center Seat Belt Retractor. Repair procedures

3.
To install, reverse removal procedure.
