Hyundai Venue: Rear Seat / Rear Seat Cushion Cover. Repair procedures

Hyundai Venue (QX) (2020-2024) Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Cushion Cover. Repair procedures

Replacement

•	Put on gloves to prevent hand injuries.

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

1.	Remove the rear seat cushion assembly. (Refer to Rear Seat - "Rear Seat Assembly")

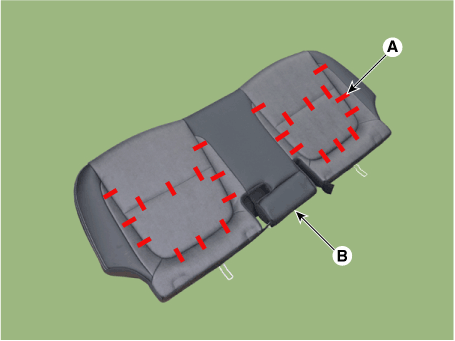

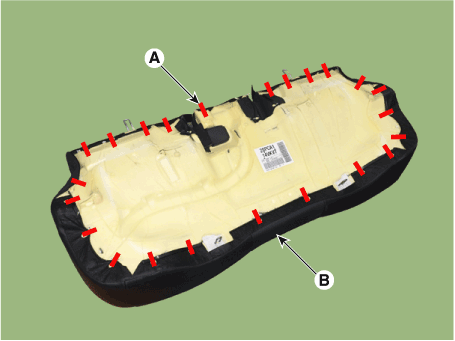

2.	After removing the hog-ring clips (A) inside the rear seat back cover, remove the seat cushion cover (B). [Front] [Rear]

3.	To install, reverse removal procedure.
