Hyundai Venue: Rear View Monitor (RVM) / Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Advanced Driver Assistance System (ADAS) / Rear View Monitor (RVM) / Repair procedures

Removal
1.
Remove the rear bumper cover.
(Refer to Body - "Rear Bumper Cover")
2.

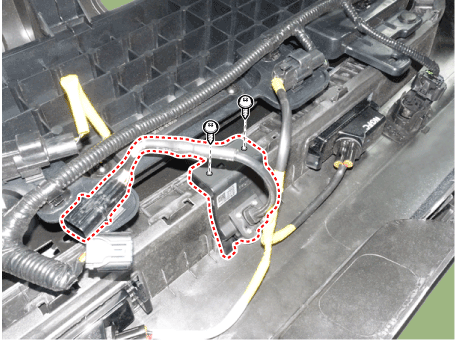

Loosen the mounting screws and remove the rear view camera.

Hyundai Venue. Repair procedures

Installation
1.
To install, reverse removal procedure.
