Replacement
1.
Open the fuel filler cap (A)

Hyundai Venue. Repair procedures

2.

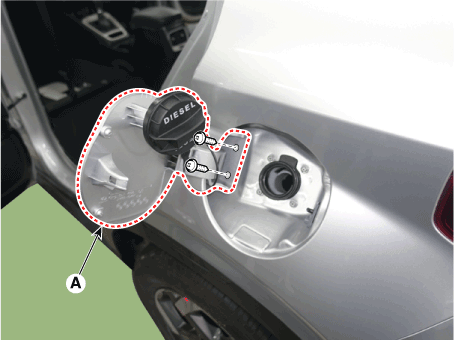

Loosen the mounting bolts and remove the fuel filler door (A).

Hyundai Venue. Repair procedures

3.
To install, reverse removal procedure.
Hyundai Venue. Repair procedures
Make sure the fuel filler door locks/unlocks and opens/closes properly.
Replace any damaged clips (or pin-type retainers).
