Hyundai Venue: Heated Oxygen Sensor (HO2S) / Schematic diagrams

Hyundai Venue (QX) (2020-2024) Service Manual / Engine Control / Fuel System / Engine Control System / Heated Oxygen Sensor (HO2S) / Schematic diagrams

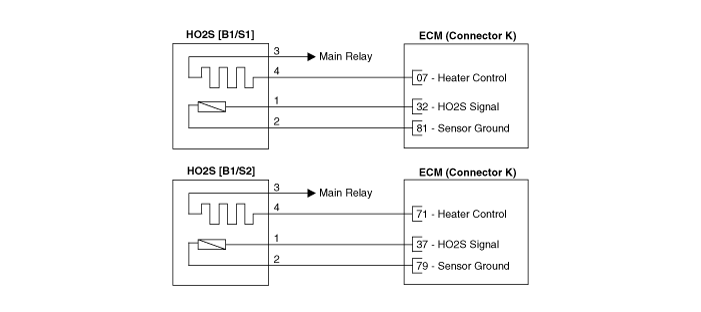

Circuit Diagram
[M/T]

Hyundai Venue. Schematic diagrams

[A/T]

Hyundai Venue. Schematic diagrams

Harness Connector

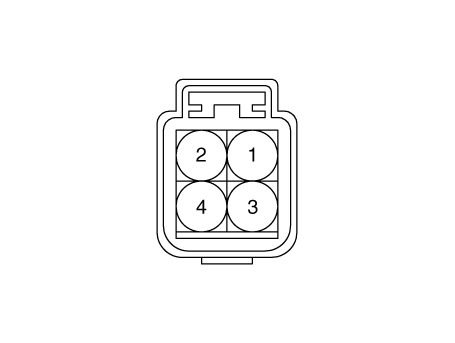

[Bank 1 / Sensor 1]

Hyundai Venue. Schematic diagrams

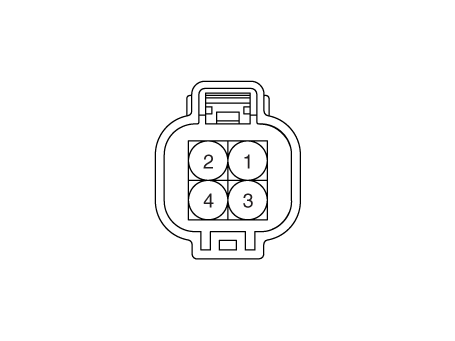

[Bank 1 / Sensor 2]

Hyundai Venue. Schematic diagrams

    Troubleshooting

    ..

    Repair procedures

    Inspection Wave form 1. Check signal waveform of HO2S using a diagnostic tool. Specification : Refer to "Waveform" Heater Resistance 1...
