Hyundai Venue: Horn / Repair procedures

Hyundai Venue (QX) (2020-2023) Service Manual / Body Electrical System / Horn / Repair procedures

Removal
1.
Remove the front bumper cover.
(Refer to Body - "Front Bumper Cover")
2.

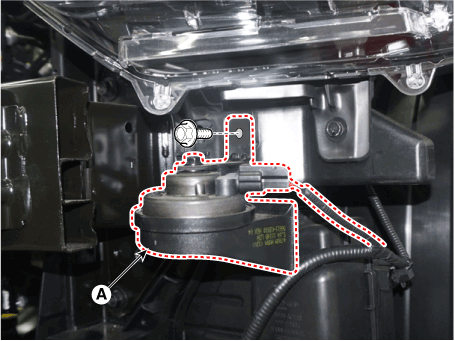

Disconnect the multifunction switch connector and then remove the low horn (A).

Hyundai Venue. Repair procedures

Installation
1.
Install the horns after connecting the horn connectors.
2.
Install the front bumper cover.

    Components and components location

    ..

    Multifunction Switch

    ..
