Hyundai Venue: Button Engine Start System / Start/Stop Button. Repair procedures

Hyundai Venue (QX) (2020-2023) Service Manual / Body Electrical System / Button Engine Start System / Start/Stop Button. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crashpad lower panel.
(Refer to BODY - "Crashpad Lower Panel")
3.

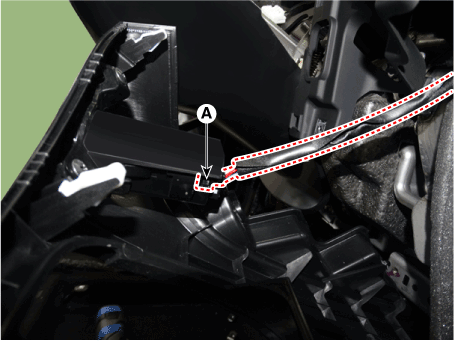

Disconnect the SSB connector (A).

Hyundai Venue. Start/Stop Button. Repair procedures

4.

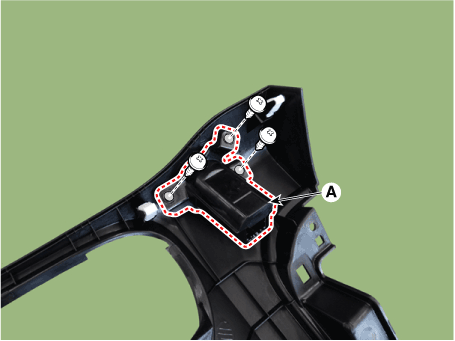

Remove the SSB button (A) after loosening mounting screws.

Hyundai Venue. Start/Stop Button. Repair procedures

Installation
1.
Install the start/stop button.
2.
Install the crash pad center panel.
3.
Connect the negative (-) battery terminal.
