Hyundai Venue: Starting System / Starter Relay. Repair procedures

Hyundai Venue (QX) (2020-2023) Service Manual / Engine Electrical System / Starting System / Starter Relay. Repair procedures

Inspection
1.
Disconnect the battery negative terminal.
2.
Remove the fuse box cover.
3.

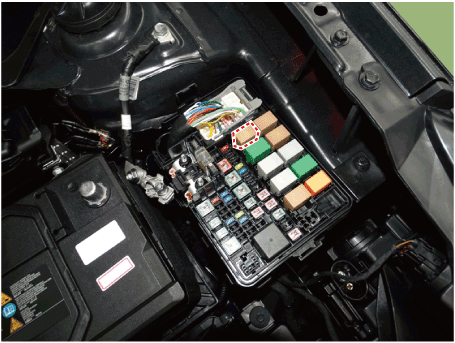

Remove the starter relay (A).

Hyundai Venue. Starter Relay. Repair procedures

4.

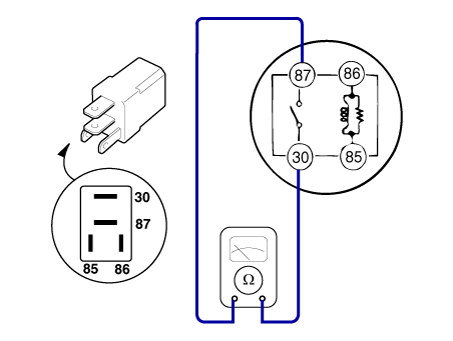

Using an ohmmeter, check that there is continuity between each terminal.
Terminal
Value
Measure
30 - 87
1MΩ or Higher
If there is continuity, replace the relay.
85 - 86
continuity
If there is no continuity, replace the relay.

Hyundai Venue. Starter Relay. Repair procedures

5.

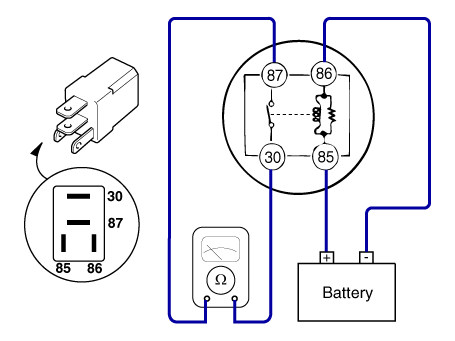

Apply 12V to terminal 85 and ground to terminal 86.
Check for continuity between terminals 30 and 87.
Terminal
Continuity
30 - 87
Below 1Ω
85 - 86
Apply 12V

Hyundai Venue. Starter Relay. Repair procedures

6.
If there is no continuity, replace the starter relay.
7.
Install the starter relay.
8.
Install the fuse box cover.
