Hyundai Venue (QX): Sunroof / Sunroof Deflector. Repair procedures
Hyundai Venue (QX) (2020-2026) Service Manual / Body (Interior and Exterior) / Sunroof / Sunroof Deflector. Repair procedures
| Replacement |
| 1. |
Open the glass fully.
|
| 2. |

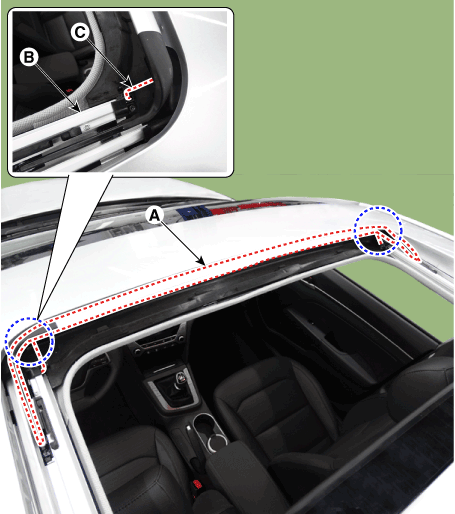

Remove the mounting bolt (C), from the frame (B), and then remove the
deflector (A).
|
| 3. |
To install, reverse the removal procedure.
|
Replacement • Put on glove to protect your hands.
Components Location 1. Sunroof assembly
