Hyundai Venue (QX) (2020-2025) Service Manual / Body (Interior and Exterior) / Sunroof / Sunroof Mechanism. Repair procedures

Replacement

1.	Remove the sunroof assembly. (Refer to Sunroof - "Sunroof Assembly")

2.	Remove the sunroof glass. (Refer to Sunroof - "Sunroof Glass")

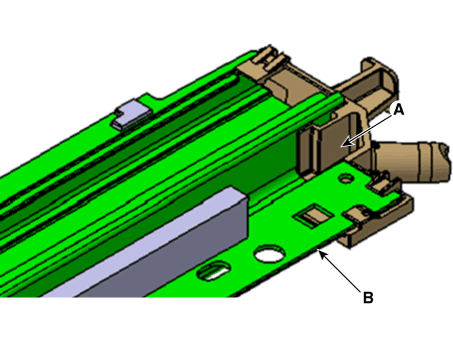

3.	Remove the rear drip (A) from frame (B).

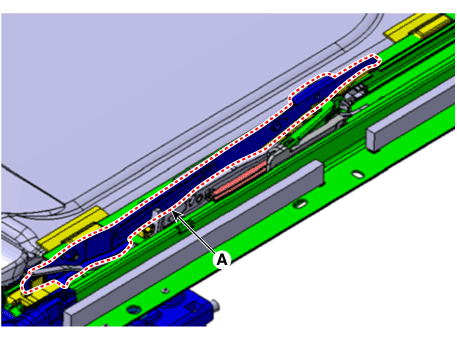

4.	Pull and remove the link (A) between the drip rail and the mechanism and separate the drip rail assembly from the mechanism.

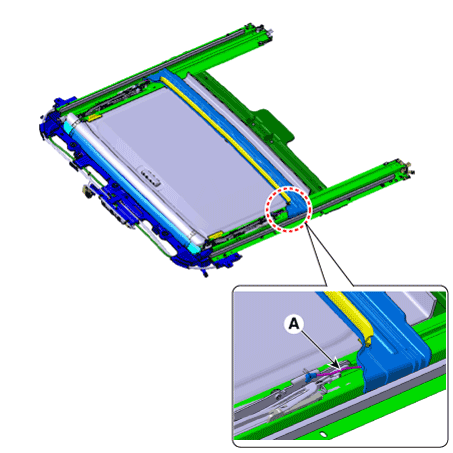

5.	Push down the slide and remove the mechanism assembly (A).

6.	To install, reverse the removal procedure.

Sunroof Sunshade. Repair procedures

Replacement 1. Remove the sunroof assembly. (Refer to Sunroof - "Sunroof Assembly") 2...
