Replacement
1.
Remove the sunroof assembly.
(Refer to Sunroof - "Sunroof Assembly")
2.

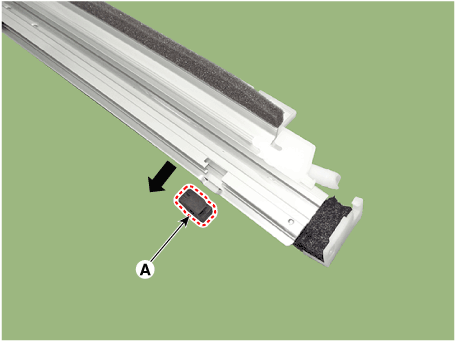

Remove the stopper (A) by pushing it in the direction of the arrow.

Hyundai Venue. Sunroof Sunshade. Repair procedures

3.

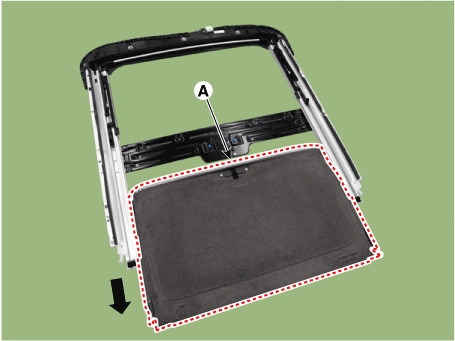

Remove the sunroof sunshade (A) by pushing it backward.

Hyundai Venue. Sunroof Sunshade. Repair procedures

4.
To install, reverse the removal procedure.
