Replacement
Hyundai Venue. Sunvisor. Repair procedures
Put on gloves to prevent hand injuries.
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
1.

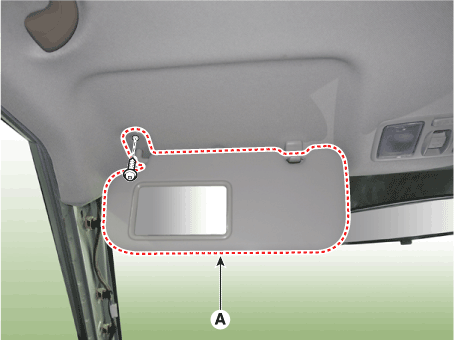

Loosen the mounting screw and seperate the sunvisor (A).

Hyundai Venue. Sunvisor. Repair procedures

2.

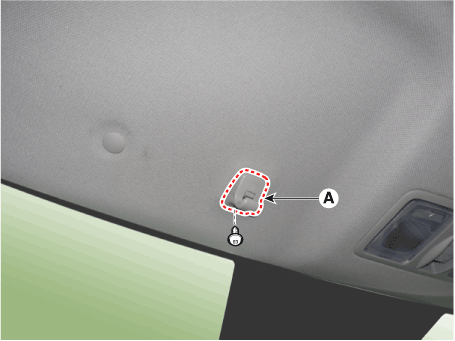

Loosen the mounting screws and remove the retainer (A).

Hyundai Venue. Sunvisor. Repair procedures

3.
To install, reverse removal procedure.
Hyundai Venue. Sunvisor. Repair procedures
Replace any damaged clips (or pin-type retainers).
