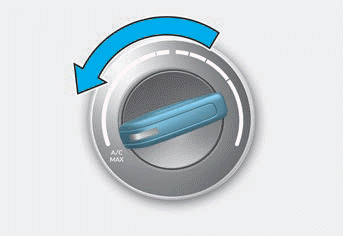

Hyundai Venue: Heating and Air Conditioning / Temperature control (3)

Instrument panel vents

The instrument panel vent air flow can be directed up/down or left/right using the vent adjustment lever. The air flow can also be CLOSED using the vent adjustment lever...

Air intake control (4)

The air intake control button is used to select either Fresh mode (outside air) or Recirculation mode (cabin air). Recirculation mode When Recirculation mode is selected, air from the passenger compartment will be recirculated through the system and heated or cooled according to the function selected...
