Hyundai Venue: Heater / Temperature Control Actuator. Repair procedures

Hyundai Venue (QX) (2020-2022) Service Manual / Heating, Ventilation and Air Conditioning / Heater / Temperature Control Actuator. Repair procedures

Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the temperature control actuator connector.
3.

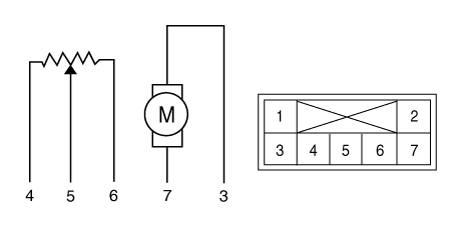

Verify that the temperature control actuator operates to the cool position when connecting 12V to terminal 3 and grounding terminal 7.
Verify that the temperature control actuator operates to the warm position when connected in reverse.

Hyundai Venue. Temperature Control Actuator. Repair procedures

1. -
2. -
3. Cool position
4. Warm position
5. Sensor (+ 5V)
6. Feedback signal
7. Sensor ground

4.
Connect the temperature control actuator connector.
5.
Turn the ignition switch ON.
6.
Check the voltage between terminal 5 and 6.
Hyundai Venue. Temperature Control Actuator. Repair procedures
It will feedback the current position of the actuator to controls.
Specification
Door Position
Voltage (V)
Error Detecting
Max. cooling
0.5 ± 0.15
Low voltage : 0.1V or less
High voltage : 4.9V or more
Max. heating
4.5 ± 0.15

7.
If the measured voltage is not within specification, check the operation by replacing the existing temperature control actuator with a new genuine part. After that, determine whether replacement of the temperature control actuator is required or not.
Diagnosis With GDS
1.
The heating, ventilation and air conditioning can be quickly diagnosed failed parts with vehicle diagnostic system (GDS).
※ The diagnostic system (GDS) provides the following information.
(1) Self diagnosis : Checking the failure code (DTC) and display.
(2) Current data : Checking the system input/output data state.
(3) Actuation test : Checking the system operation condition.
(4) Additional function : Other controlling such as he system option and zero point adjustment.
2.
Select the 'Car model' and the system to be checked in order to check the vehicle with the tester.
3.

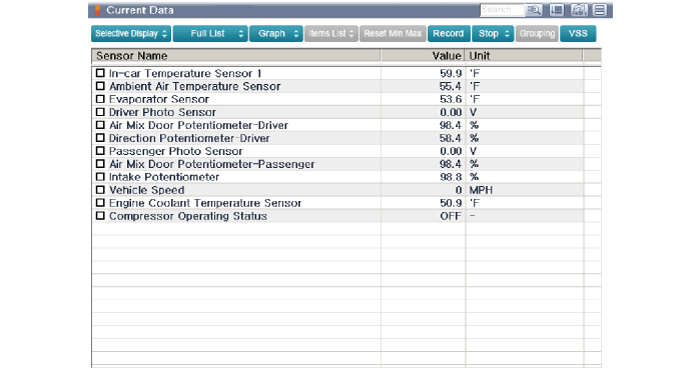

Select the 'Current data' menu to search the current state of the input / output data.
The input / output data for the sensors corresponding to the Temperature Control Actuator can be checked.

Hyundai Venue. Temperature Control Actuator. Repair procedures

4.
To perform compulsory operation on Temperature Control Actuator input factors, select "ACTUATION TEST".

Hyundai Venue. Temperature Control Actuator. Repair procedures

Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad center panel.
(Refer to Body (Interior and Exterior) - "Crash Pad Center Panel")
3.

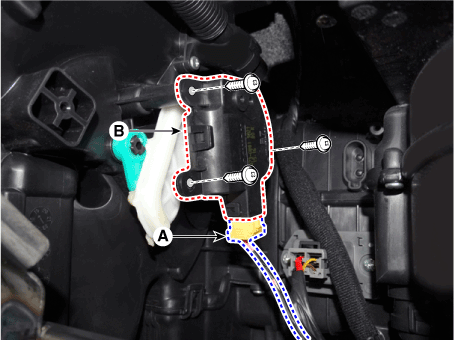

Separate the connector (A), loosen the mounting screws and remove the temperature control actuator (B).

Hyundai Venue. Temperature Control Actuator. Repair procedures

4.
To install, reverse the removal procedure.
Hyundai Venue. Temperature Control Actuator. Repair procedures
Make sure the connector is connected in properly.
Replace any damaged clips.
