Hyundai Venue: Front Seat Belt / Front Seat Belt Buckle. Repair procedures

Hyundai Venue (QX) (2020-2022) Service Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Buckle. Repair procedures

Replacement
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.

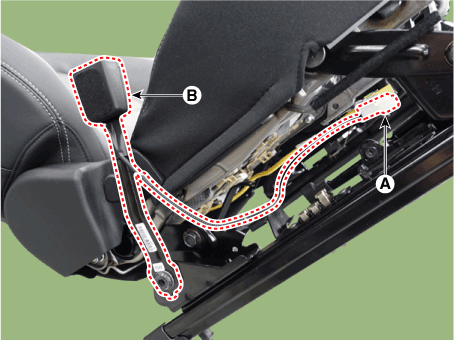

Separate the front seat belt buckle wiring (A).
3.
Loosen the mounting bolt and remove the front seat belt buckle (B).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

Hyundai Venue. Front Seat Belt Buckle. Repair procedures

4.
To install, reverse removal procedure.
Hyundai Venue. Front Seat Belt Buckle. Repair procedures
Make sure the connector is plugged in properly.
