| Specification |
|
Items |
Specification |
|
|
APS 1 |
APS 2 |
|
|
C.T |
0.7 - 0.8 |
0.33 - 0.43 |
|
W.O.T |
4.13 - 4.22 |
2.04 - 2.13 |

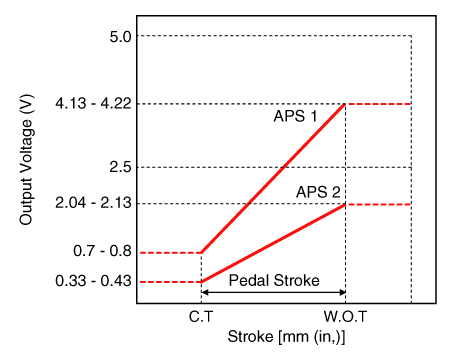

Description Accelerator Position Sensor (APS) is installed on the accelerator pedal module and detects the rotation angle of the accelerator pedal.
Circuit Diagram [M/T] [A/T] Harness Connector
Inspection 1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column. 2. Check for continuity between the terminals. 3.
Removal Precautions for using the plastic pulley • Be careful not to place the pulley to downwards of the floor or table.
