Hyundai Venue: Roof Trim / Assist Handle. Repair procedures

Hyundai Venue (QX) (2020-2022) Service Manual / Body (Interior and Exterior) / Roof Trim / Assist Handle. Repair procedures

Replacement
Hyundai Venue. Assist Handle. Repair procedures
Put on gloves to prevent hand injuries.
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
1.

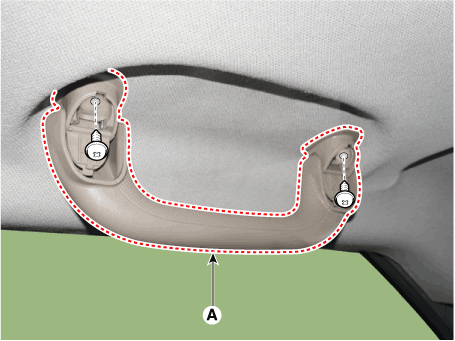

After lifting up the assist handle caps and loosening the mounting screws, remove the assist handle (A).

Hyundai Venue. Assist Handle. Repair procedures

2.
To install, reverse removal procedure.
