Hyundai Venue: Driveshaft Assembly / BJ Boot. Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Driveshaft and axle / Driveshaft Assembly / BJ Boot. Repair procedures

Removal
1.
Remove the front driveshaft.
(Refer to Driveshaft Assembly - "Front Driveshaft")
2.
Remove the TJ joint assembly.
(Refer to Driveshaft Assembly - "TJ Joint")
3.
Remove the Dynamic damper.
(Refer to Driveshaft Assembly - "Dynamic Damper")
4.

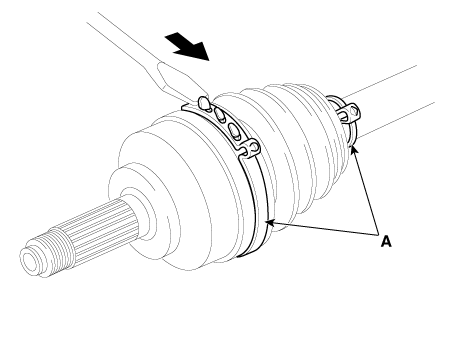

Using a plier or flat-tipped (-) screwdriver, remove the BJ boot bands (A).

Hyundai Venue. BJ Boot. Repair procedures

5.
Remove the BJ boot.
6.
Install in the reverse order of removal.
Hyundai Venue. BJ Boot. Repair procedures
Do not disassemble the BJ assembly.
Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
The boot band should be replaced with a new one.
7.
Check the front alignment.
(Refer to Suspension System - "Front Alignment")
Installation
1.
To install, reverse the removal procedure.
2.

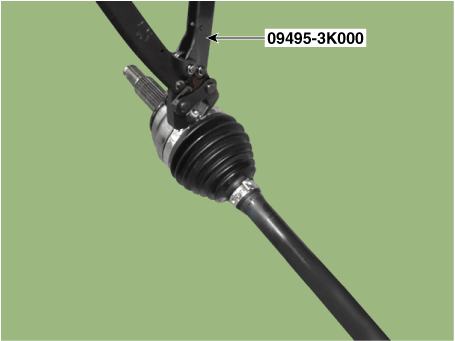

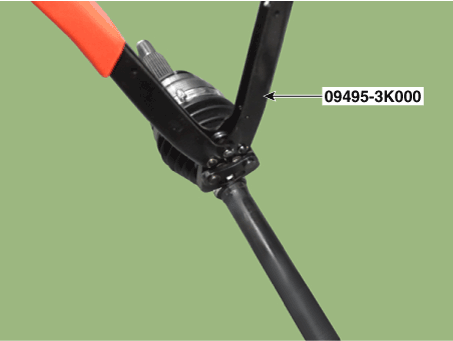

Using the SST(09495-3K000), secure the BJ boot bands.

Hyundai Venue. BJ Boot. Repair procedures

Hyundai Venue. BJ Boot. Repair procedures

Hyundai Venue. BJ Boot. Repair procedures
Do not reuse the boot band.
3.
Install the TJ joint assembly.
(Refer to Driveshaft Assembly - "TJ joint")
4.
Install the front driveshaft.
(Refer to Driveshaft Assembly - "Front Driveshaft")
5.
Check the front alignment.
(Refer to Suspension System - "Front Alignment")

    BJ Boot. Components and components location

    Components (1) 1. BJ assembly 2. BJ circlip 3. BJ boot band 4. BJ boot 5. Dynamic damper 6. Shaft 7...
