Hyundai Venue: Power Door Mirrors / Components and components location

Hyundai Venue (QX) (2020-2024) Service Manual / Body Electrical System / Power Door Mirrors / Components and components location

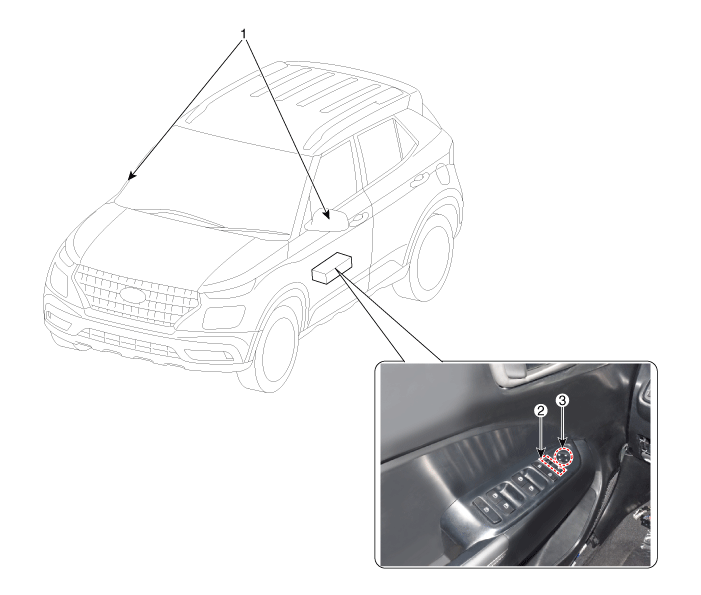

Component Location

Hyundai Venue. Components and components location

1. Power door mirror
2. Power door mirror control (LH/RH)
3. Power door mirror switch
