Component Location

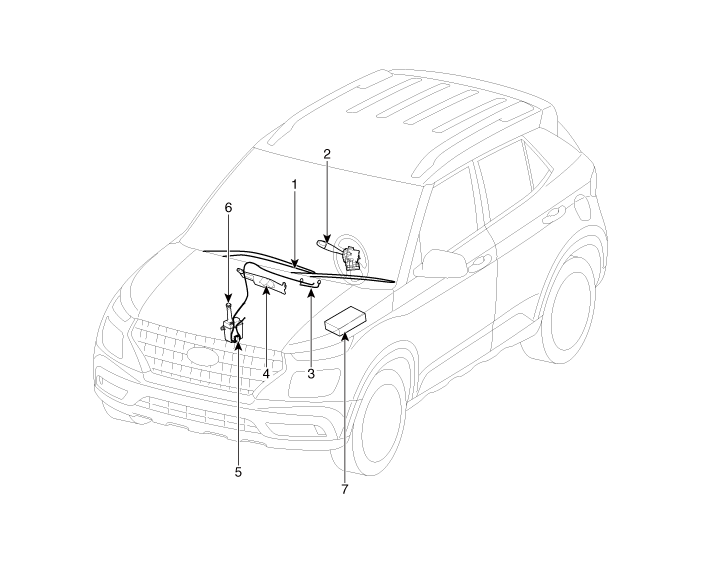

Hyundai Venue. Components and components location

1. Windshield wiper arm & blade
2. Wiper & washer switch
3. Windshield washer hose
4. Windshield wiper motor & linkage
5. Washer motor
6. Washer reservoir
7. Front wiper relay
