Hyundai Venue: Engine Control System / Components and components location

Hyundai Venue (QX) (2020-2022) Service Manual / Engine Control / Fuel System / Engine Control System / Components and components location

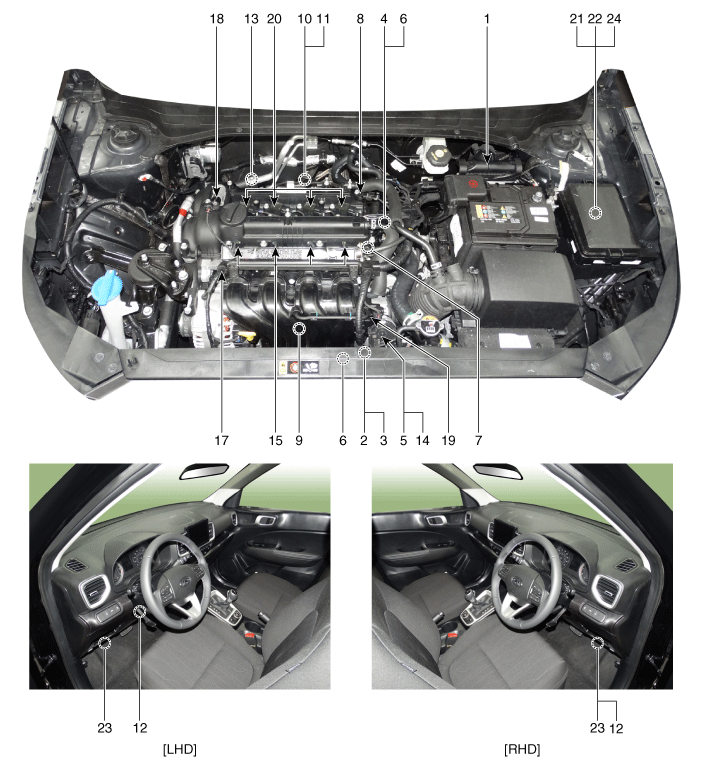

Components Location

Hyundai Venue. Components and components location

1. ECM (Engine Control Module)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)
4. Engine Coolant Temperature Sensor (ECTS)
5. Throttle Position Sensor (TPS) [integrated into ETC Module]
6. Crankshaft Position Sensor (CKPS)
7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
9. Knock Sensor (KS)
10. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]
11. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]
12. Accelerator Position Sessor (APS)
13. A/C Pressure Transducer (APT)
14. ETC Motor [integrated into ETC Module]
15. Injector
16. Purge Control Solenoid Valve (PCSV)
17. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]
18. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
19. Variable Intake Solenoid (VIS) Valve
20. Ignition Coil
21. Main Relay
22. Fuel Pump Relay
23. Data Link Connector (DLC) [16 pin]
24. Multi-Purpose Connector [6 pin]

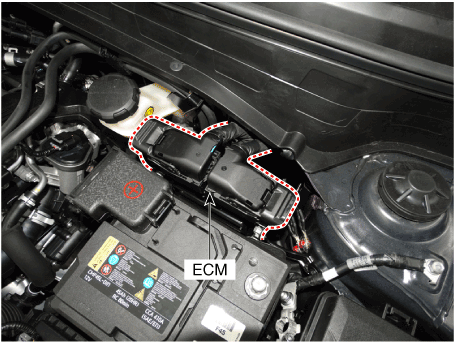

1. ECM (Engine Control Module)

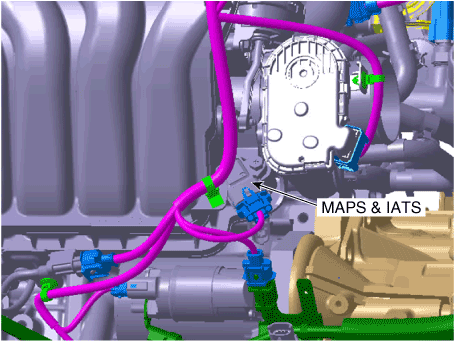

2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)

Hyundai Venue. Components and components location

Hyundai Venue. Components and components location

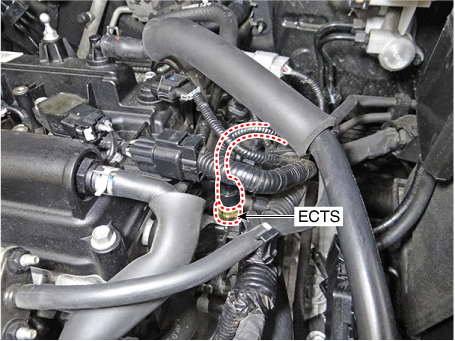

4. Engine Coolant Temperature Sensor (ECTS)

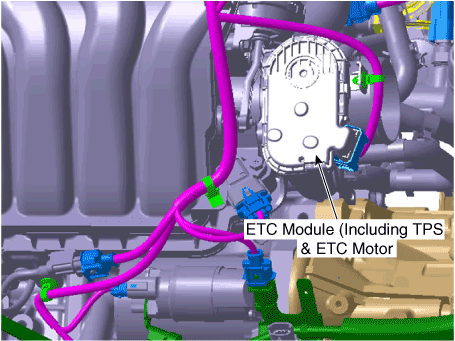

5. Throttle Position Sensor (TPS) [Integrated into ETC Module]
14. ETC Motor [integrated into ETC Module]

Hyundai Venue. Components and components location

Hyundai Venue. Components and components location

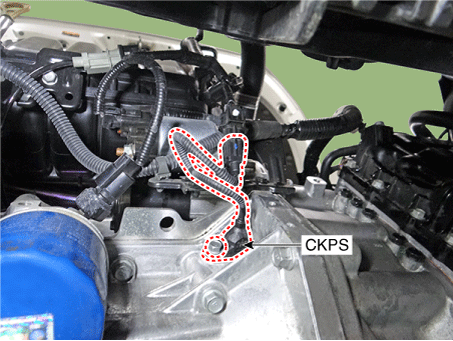

6. Crankshaft Position Sensor (CKPS)

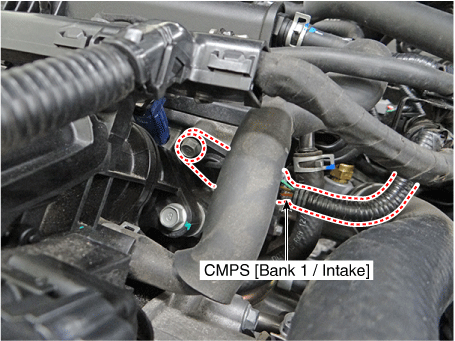

7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]

Hyundai Venue. Components and components location

Hyundai Venue. Components and components location

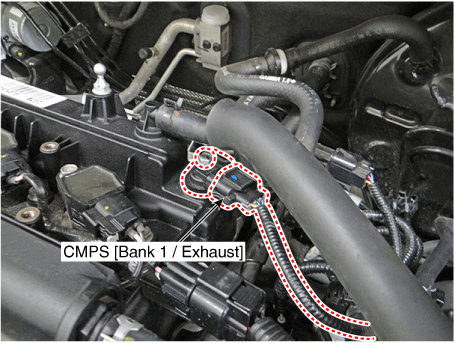

8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]

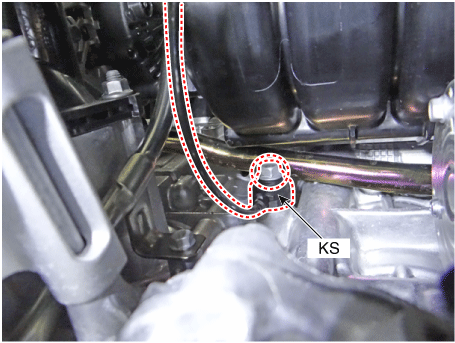

9. Knock Sensor (KS)

Hyundai Venue. Components and components location

Hyundai Venue. Components and components location

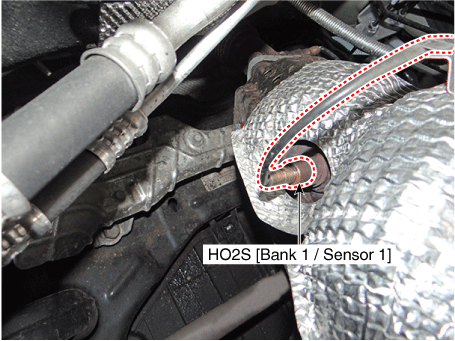

10. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]

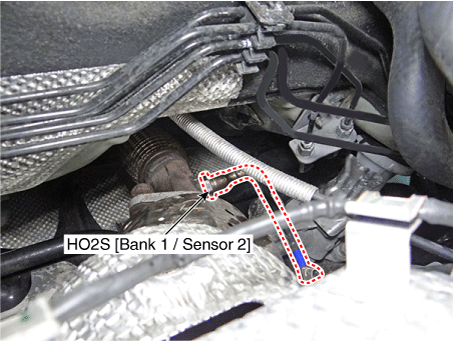

11. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]

Hyundai Venue. Components and components location

Hyundai Venue. Components and components location

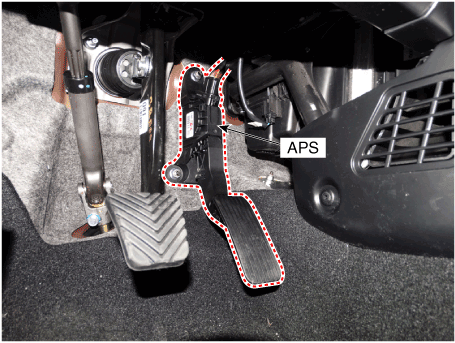

12. Accelerator Position Sessor (APS)

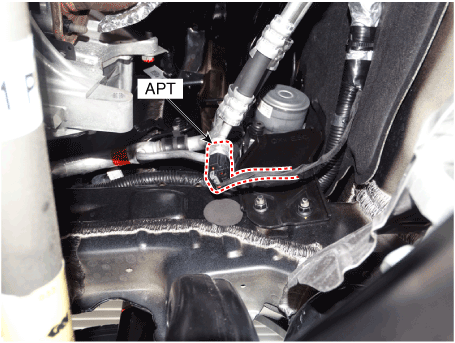

13. A/C Pressure Transducer (APT)

Hyundai Venue. Components and components location

Hyundai Venue. Components and components location

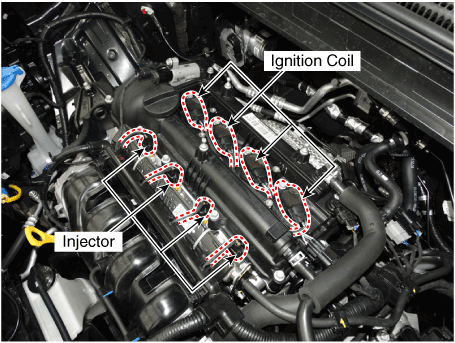

15. Injector
20. Ignition Coil

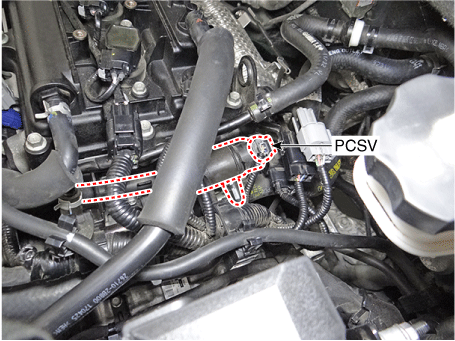

16. Purge Control Solenoid Valve (PCSV)

Hyundai Venue. Components and components location

Hyundai Venue. Components and components location

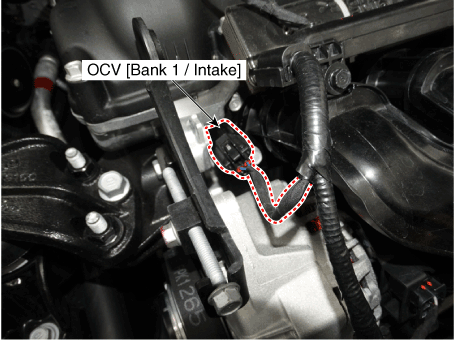

17. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]

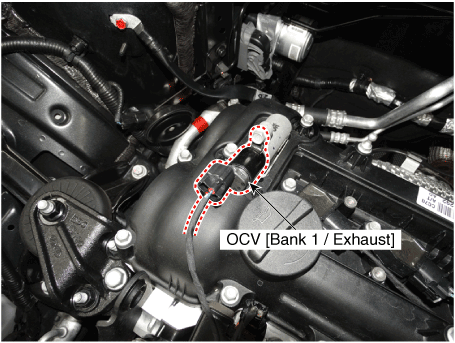

18. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]

Hyundai Venue. Components and components location

Hyundai Venue. Components and components location

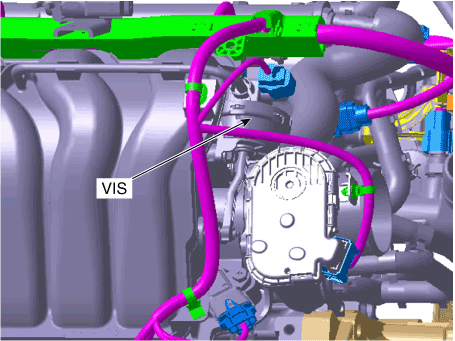

19. Variable Intake Solenoid (VIS) Valve
21. Main Relay
22. Fuel Pump Relay

Hyundai Venue. Components and components location

Hyundai Venue. Components and components location

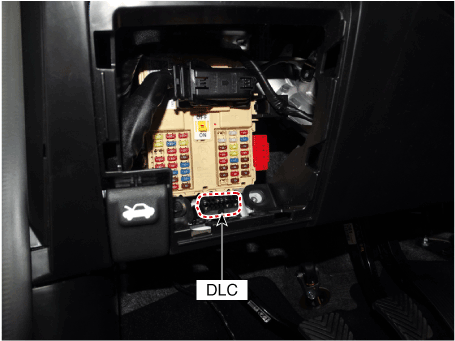

23. Data Link Connector (DLC) [16 pin]

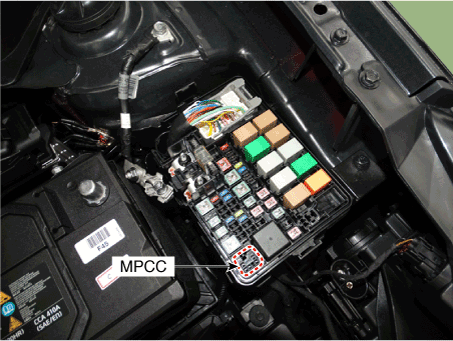

24. Multi-Purpose Check Connector [6 pin]

Hyundai Venue. Components and components location

Hyundai Venue. Components and components location
