Hyundai Venue: Fuel Delivery System / Components and components location

Hyundai Venue (QX) (2020-2025) Service Manual / Engine Control / Fuel System / Fuel Delivery System / Components and components location

Components Location

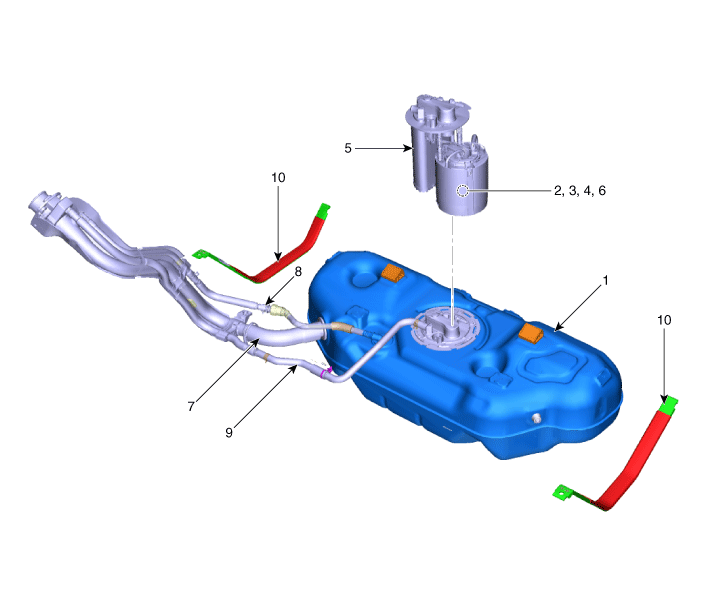

Hyundai Venue. Components and components location

1. Fuel tank
2. Fuel pump
3. Fuel filter
4. Fuel pressure regulator
5. Canister
6. Fuel level sensor (FLS)
7. Fuel filler hose
8. Leveling hose
9. Ventilation tube
10. Fuel tank band

    Fuel Delivery System

    ..

    Fuel pressure test

    Fuel Pressure Test 1. Release the residual pressure in fuel line. (Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line")    • When removing the fuel pump fuse, a Diagnostic Trouble Code (DTC) may occur...
