Hyundai Venue: Crash Pad / Components and components location

Hyundai Venue (QX) (2020-2022) Service Manual / Body (Interior and Exterior) / Crash Pad / Components and components location

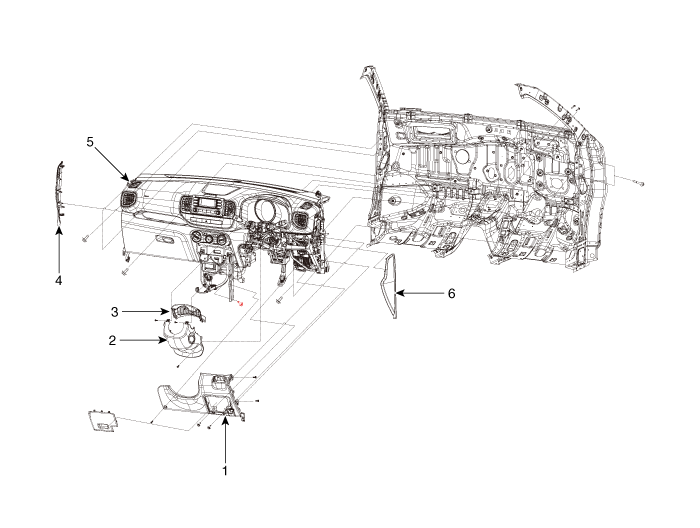

Components (1)

Hyundai Venue. Components and components location

1. Crash pad lower panel
2. Steering column shroud lower panel
3. Steering column shroud upper panel
4. Crash pad side cover [LH]
5. Main crash pad assembly
6. Crash pad side cover [RH]
