Hyundai Venue (QX) (2020-2024) Service Manual / Body (Interior and Exterior) / Interior Trim / Components and components location

Components

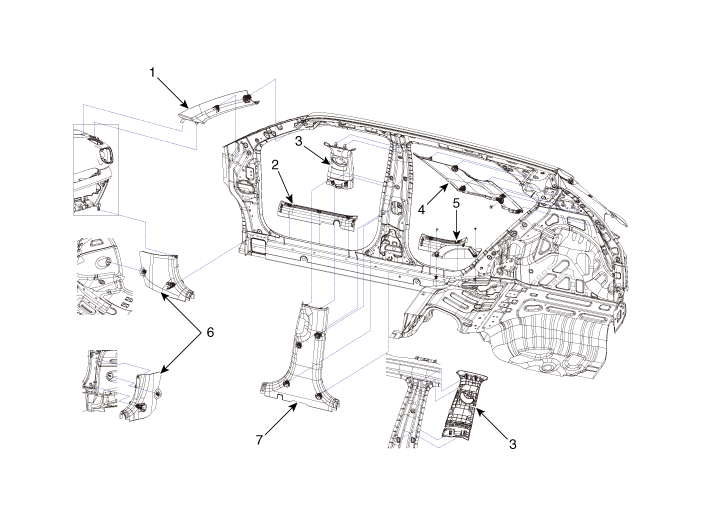

Hyundai Venue. Components and components location

1. Front pillar trim
2. Front door scuff trim
3. Center pillar upper trim
4. Rear pillar trim
5. Rear door scuff trim
6. Cowl side trim
7. Center pillar lower trim
