Hyundai Venue: Cooling System / Cooling Fan. Repair procedures
Cooling Fan Assembly
1. |
Disconnect the battery negative terminal.
|
2. |
Remove the air duct.
(Refer to Intake and Exhaust System - "Air Cleaner")
|
3. |

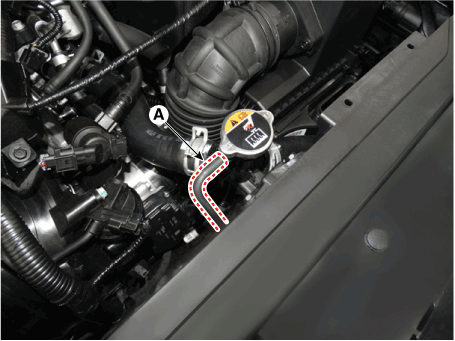

Disconnect the over flow hose (A).
|
4. |

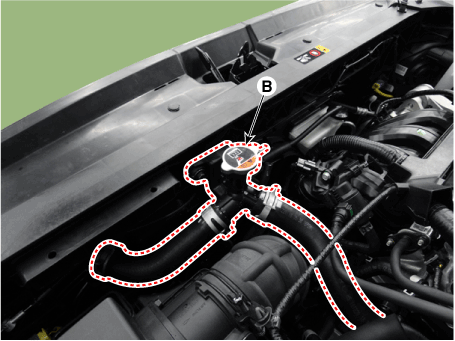

Disconnect the radiator upper hose (A) and then remove the filler neck
assembly (B).
Tightening torque:
7.8 - 11.8 Nm (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
|
|
5. |

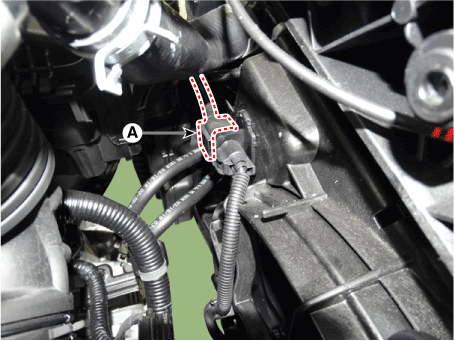

Disconnect the wiring harness connector (A).
|
6. |
Remove the front bumper.
(Refer to Body (Interior and Exterior) - "Front Bumper")
|
7. |
Remove the intake shield (A).
Tightening torque:
7.8 - 11.8 Nm (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
|
|

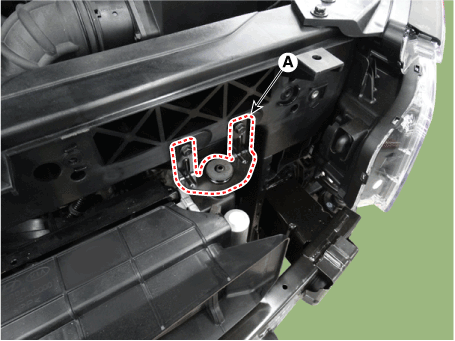

8. |

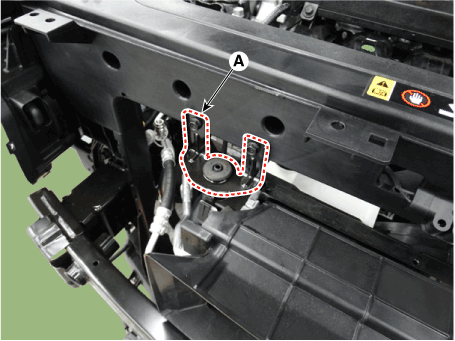

Remove the radiator upper mounting bracket (A).
Tightening torque :
7.8 - 11.8 Nm (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
|
[LH]
[RH]
|
9. |
Remove the front bumper beam.
(Refer to Body (Interior and Exterior) - "Front Bumper Beam Assembly")
|

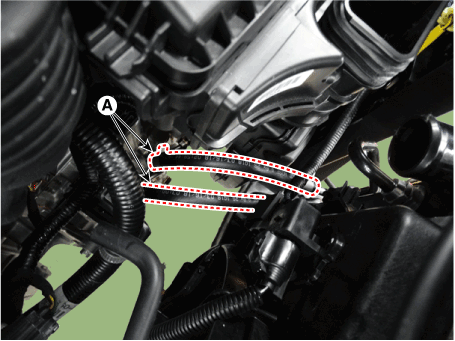

10. |
Disconnect the ATF cooler hoses (A).
|
11. |

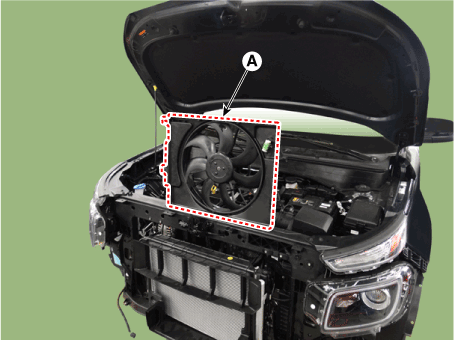

Remove the cooling fan (A) from the radiator.
|
12. |
Install in the reverse order of removal.
|
13. |
Fill with engine coolant.
(Refer to Cooling System - "Coolant")
•
|
The coolant must be injected according to the integrated
thermal management module (ITM) coolant filling method.
|
|
|
Resistor
1. |
Disconnect the battery terminals.
|
2. |

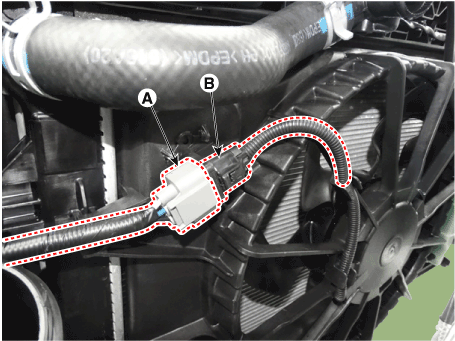

Disconnect the wire harness connector (A) and fan motor connector (B).
|
3. |

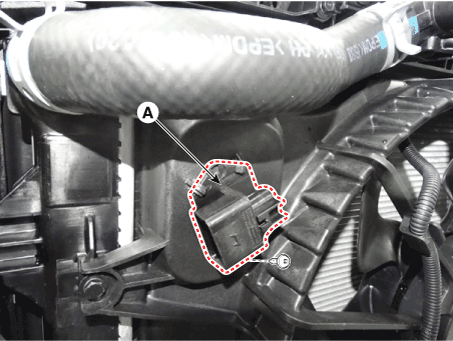

Remove the resistor (A) from fan shroud.
Tightening torque :
1.7 - 2.4 (0.18 - 0.25 kgf.m, 1.3 - 1.8 lb-ft)
|
|
4. |
Install in the reverse order of removal.
|
Disassembly
1. |

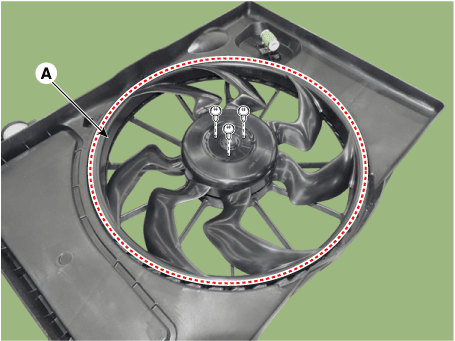

Remove the cooling fan (A) from the cooling fan shroud.
Tightening torque :
2.8 - 3.2 N.m (0.28 - 0.33 kgf.m, 2.1 - 2.4 lb-ft)
|
|

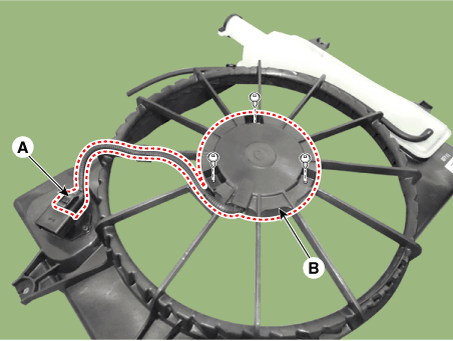

2. |
Disconnect the fan motor connector (A) from the resistor.
|
3. |
Loosen the screws and then remove the fan motor (B) from the cooling
fan shroud.
Tightening torque :
3.9 - 5.8 N.m (0.4 - 0.6 kgf.m, 2.8 - 4.3 lb-ft)
|
|
4. |
Assemble in the reverse order of disassembly.
|
