Hyundai Venue (QX): Engine And Transmission Assembly / Engine Cover. Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Engine Mechanical System / Engine And Transmission Assembly / Engine Cover. Repair procedures

Removal and Installation
1.

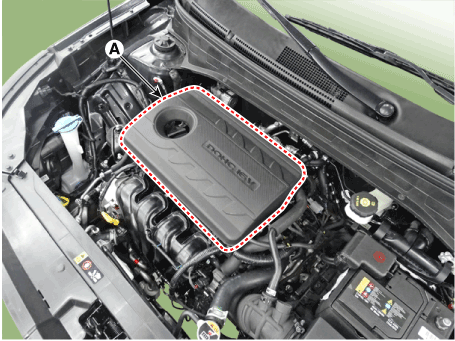

Remove the engine cover (A).

Hyundai Venue. Engine Cover. Repair procedures
2.
Installation is reverse order of removal
