Hyundai Venue: Fuel Delivery System / Fuel Line. Repair procedures

Hyundai Venue (QX) (2020-2023) Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Line. Repair procedures

Removal
1.
Turn the ignition switch OFF, and then remove battery (-) cable.
2.
Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line")
3.

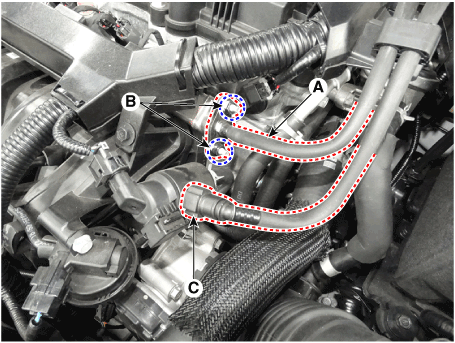

Disconnect the fuel feed tube (A) after remove the nuts (B).
4.
Disconnect the vapor tube quick-connector (C) which is connected from the PCSV.

Hyundai Venue. Fuel Line. Repair procedures
5.
Lift the vehicle.
6.
Remove the fuel tank.
(Refer to Fuel Delivery System - "Fuel Tank")
7.

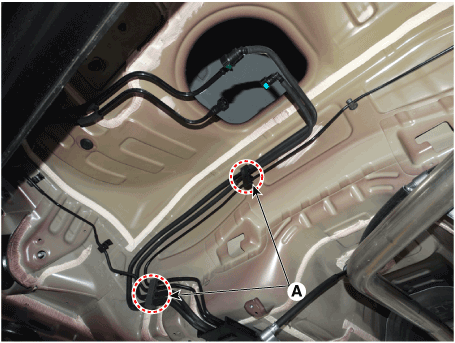

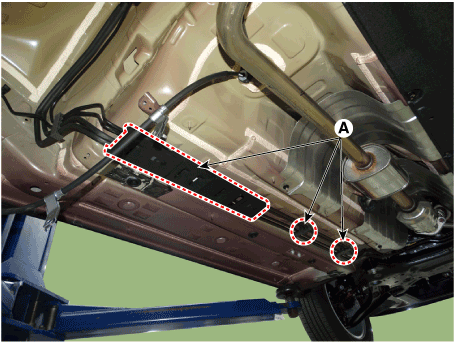

Remove the vapor tube and fuel feed tube line fixing clips (A) by using a common driver.

Hyundai Venue. Fuel Line. Repair procedures

Hyundai Venue. Fuel Line. Repair procedures
Installation
1.
Install in the reverse order of removal.
