Removal
1.
Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line")
2.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
3.
Remove the rear seat.
(Refer to Body - "Rear Seat Assembly")
4.

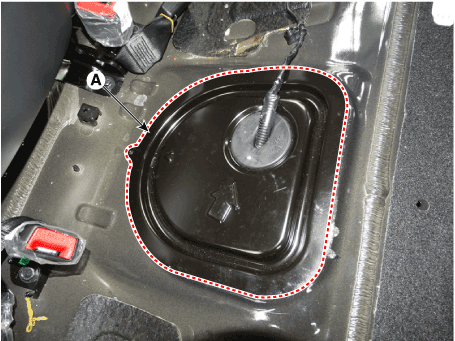

Remove the fuel pump service cover (A).

Hyundai Venue. Fuel Pump. Repair procedures

5.

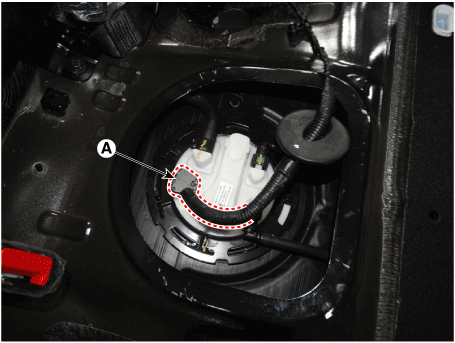

Disconnect the fuel pump connector (A).

Hyundai Venue. Fuel Pump. Repair procedures

6.

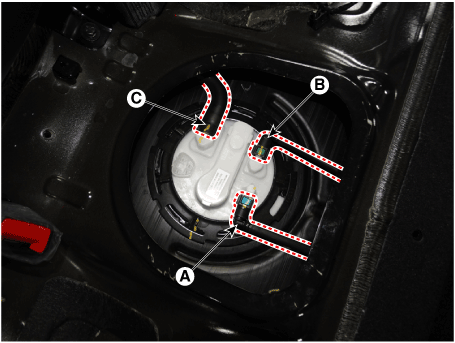

Disconnect the fuel feed tube quick-connector (A).
7.
Disconnect the ventilation hose (B).
8.
Disconnect the vapor hose quick-connector (C).

Hyundai Venue. Fuel Pump. Repair procedures

9.

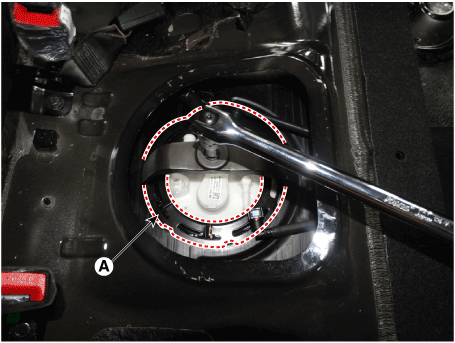

Remove the locking ring (A) by using the SST [SST No : 09310-B8100] from the fuel tank.
Hyundai Venue. Fuel Pump. Repair procedures
When removing the plate cover, be careful not to damage the fuel tank and fuel pump.
When removing the plate cover, press the upper area with hand and rotate the wrench counter clockwise.

Hyundai Venue. Fuel Pump. Repair procedures

10.

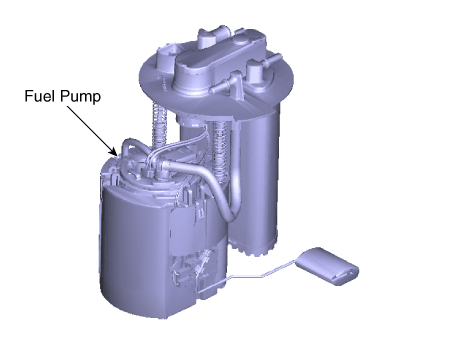

Remove the fuel pump from the fuel tank.

Hyundai Venue. Fuel Pump. Repair procedures

Installation
1.
Install in the reverse order of removal.
Hyundai Venue. Fuel Pump. Repair procedures
Be careful of fuel pump direction when installing. (Refer to the groove in the fuel tank)
