Removal
1.
Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line")
2.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
3.
Remove the rear seat.
(Refer to Body - "Rear Seat Assembly")
4.

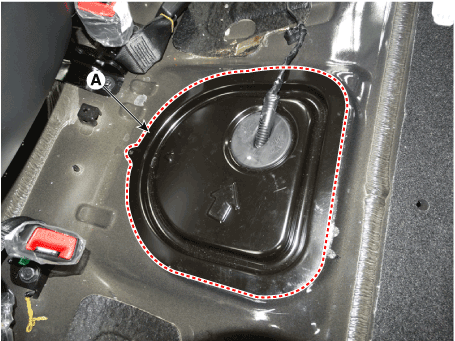

Remove the fuel pump service cover (A).

Hyundai Venue. Fuel Tank. Repair procedures

5.

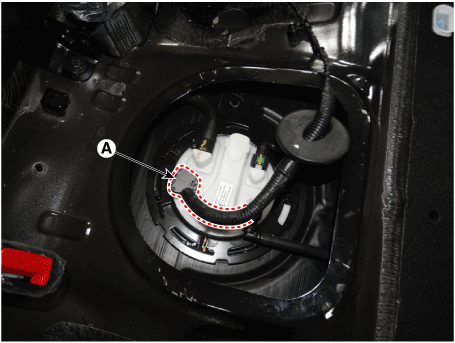

Disconnect the fuel pump connector (A).

Hyundai Venue. Fuel Tank. Repair procedures

6.

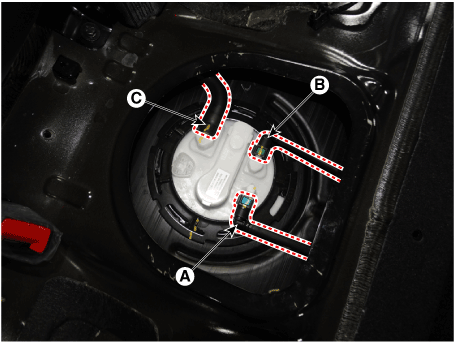

Disconnect the fuel feed tube quick-connector (A).
7.
Disconnect the ventilation hose (B).
8.
Disconnect the vapor hose quick-connector (C).

Hyundai Venue. Fuel Tank. Repair procedures

9.
Lift the vehicle.
10.

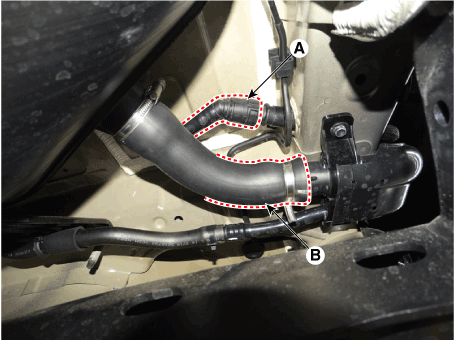

Disconnect the Leveling hose quick-connector (A).
11.
Disconnect the fuel filler hose (B).

Hyundai Venue. Fuel Tank. Repair procedures

12.

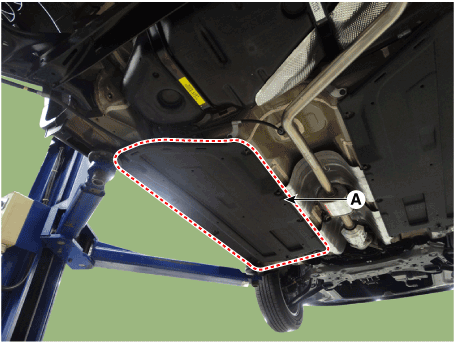

Remove the side under cover (A).

Hyundai Venue. Fuel Tank. Repair procedures

13.

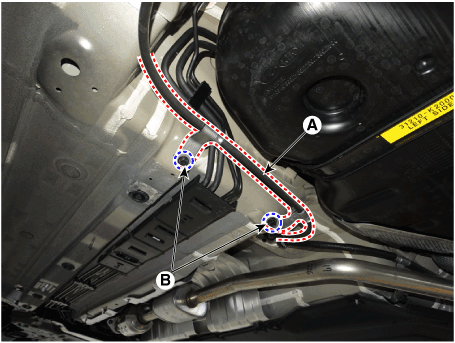

Remove the brake line (A) bracket mounting bolts (B).

Hyundai Venue. Fuel Tank. Repair procedures

14.

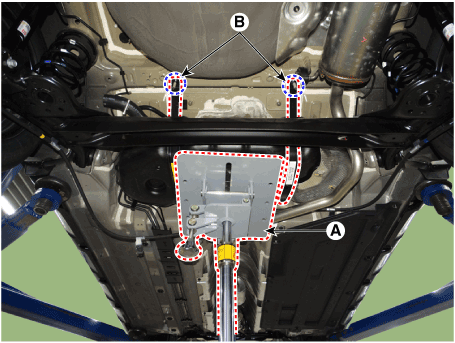

Support the fuel tank with jack (A).
15.
Remove the fuel tank installation nut (B) and then loosen the fuel tank.
Fuel tank band installation nut :
39.2 - 54.0 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

Hyundai Venue. Fuel Tank. Repair procedures

Installation
1.
Install in the reverse order of removal.
