Hyundai Venue: Steering System / Repair procedures

Hyundai Venue (QX) (2020-2023) Service Manual / Steering System / Repair procedures

Inspection
Steering Wheel Play Inspection
1.
Turn the steering wheel so that the front wheels can face straight ahead.
2.

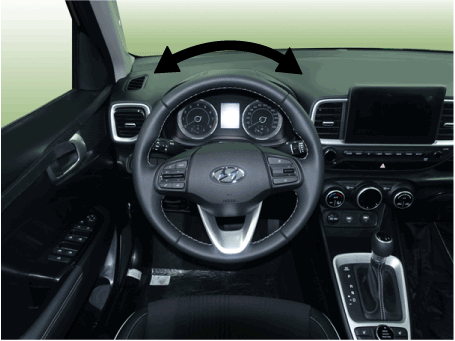

Measure the distance the steering wheel can be turned without moving the front wheels.
Standard value : 30 mm (1.18 in.) or less

Hyundai Venue. Repair procedures

3.
If the play exceeds standard value, inspect the steering column, shaft, and linkages.
Checking stationary steering effort
1.
Position the vehicle on a level surface and place the steering wheel in the straight ahead position.
2.

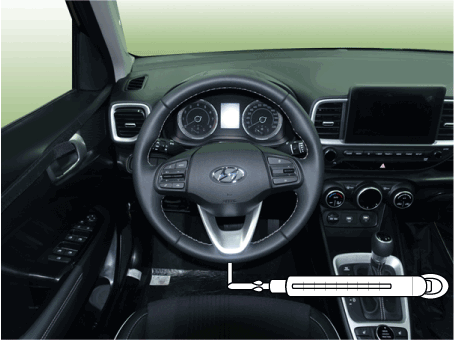

Attach a spring scale to the steering wheel. With the engine speed 600 ± 100 rpm, pull the scale and read it as soon as the tires begin to turn.
Standard value : 3.0 kgf or less

Hyundai Venue. Repair procedures

3.
If the measured value exceeds standard value, inspect the steering gear box and EPS system.
