Hyundai Venue: Fuel Delivery System / Fuel Filter. Repair procedures

Hyundai Venue (QX) (2020-2024) Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Filter. Repair procedures

Removal
1.
Remove the fuel pump.
(Refer to Fuel Delivery System - "Fuel Pump")
2.

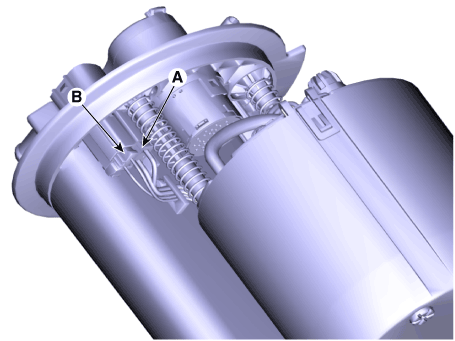

Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

Hyundai Venue. Fuel Filter. Repair procedures
3.

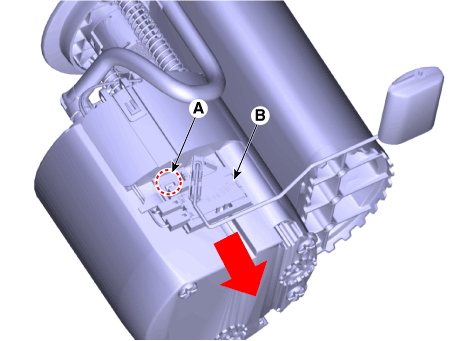

Press the fixing hook (A) with a driver and then remove fuel sender (B) in the arrow direction.

Hyundai Venue. Fuel Filter. Repair procedures
4.

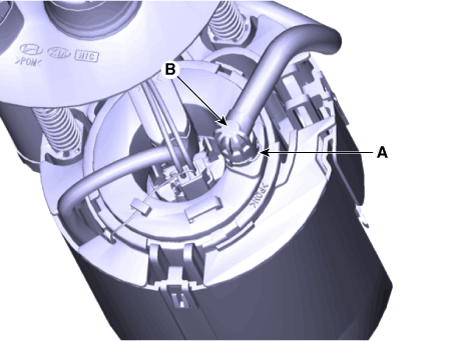

Remove the fuel feed tube quick-connector (B) after releasing the fixing clip (A).

Hyundai Venue. Fuel Filter. Repair procedures
5.

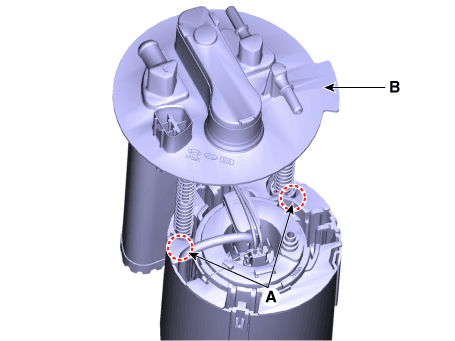

Remove the head assembly (B) after releasing the fixing hooks (A).

Hyundai Venue. Fuel Filter. Repair procedures
6.

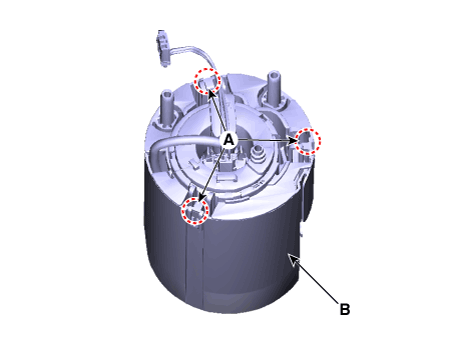

Remove the reservoir-cup (B) after releasing the fixing hooks (A).

Hyundai Venue. Fuel Filter. Repair procedures
7.

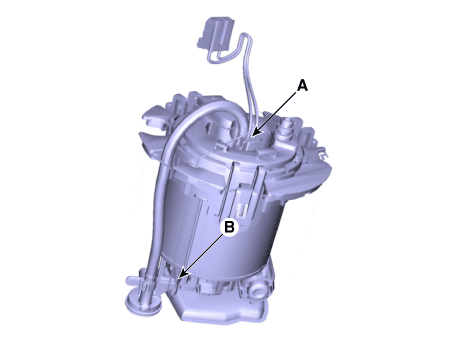

Disconnect the fuel pump motor connector (A).
8.
Disconnect the ground cable (B).

Hyundai Venue. Fuel Filter. Repair procedures
9.
Release the fixing hooks (A) and then remove fuel pressure regulator (B).

Hyundai Venue. Fuel Filter. Repair procedures
10.

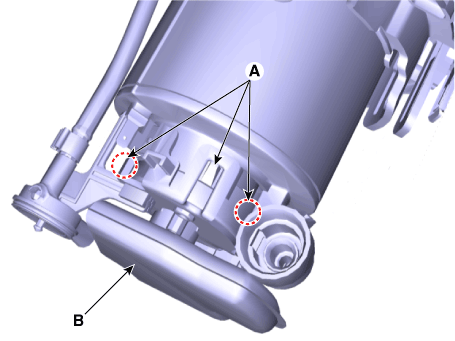

Release the fixing hooks (A) and then remove pre-filter (B).

Hyundai Venue. Fuel Filter. Repair procedures
11.

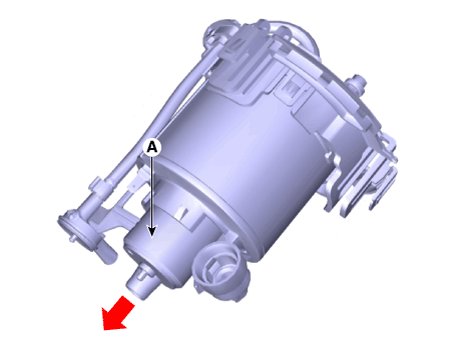

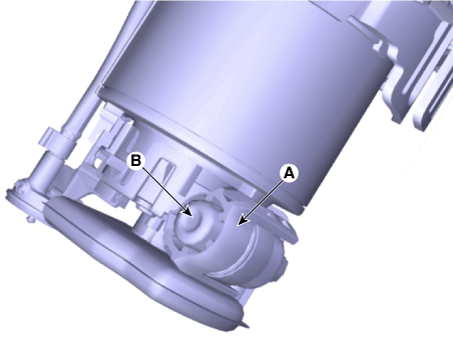

Remove the fuel pump motor (A) in the direvtion ofan arrow.

Hyundai Venue. Fuel Filter. Repair procedures
12.

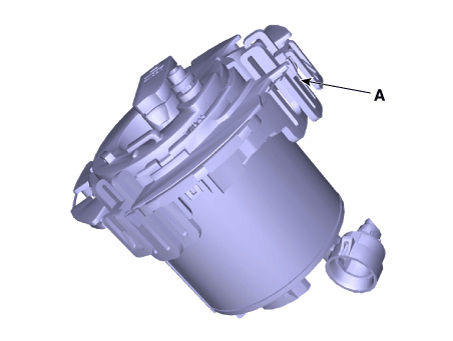

Remove the bracket (A) after releasing the fixing hooks.

Hyundai Venue. Fuel Filter. Repair procedures

Hyundai Venue. Fuel Filter. Repair procedures
Installation
1.
Installation is reverse of removal.
