Hyundai Venue: Fuel Delivery System / Fuel Sender. Repair procedures

Hyundai Venue (QX) (2020-2022) Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Sender. Repair procedures

Removal
1.
Remove the fuel pump.
(Refer to Fuel Delivery System - "Fuel Pump")
2.
Disconnect the fuel sender connector (A).

Hyundai Venue. Fuel Sender. Repair procedures

3.

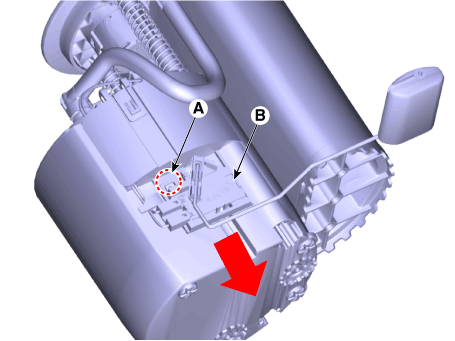

Press the fixing hook (A) with a driver and then remove fuel sender (B) in the arrow direction.

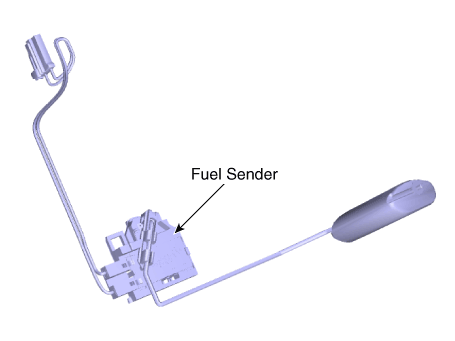

Hyundai Venue. Fuel Sender. Repair procedures

Hyundai Venue. Fuel Sender. Repair procedures

Installation
1.
Installation is reverse of removal.
