Removal
1.
Remove the fuel pump.
(Refer to Fuel Delivery System - "Fuel Pump")
2.

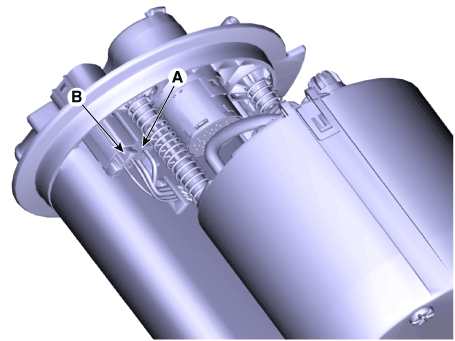

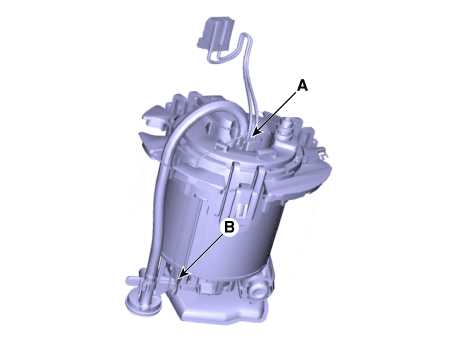

Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

Hyundai Venue. Fuel Pressure Regulator. Repair procedures

3.

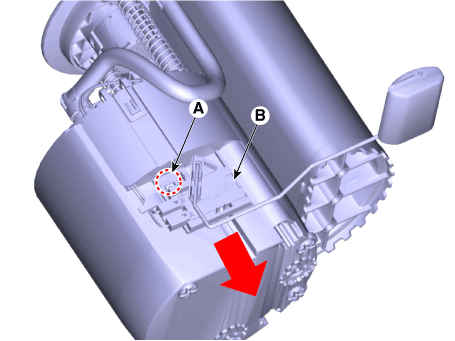

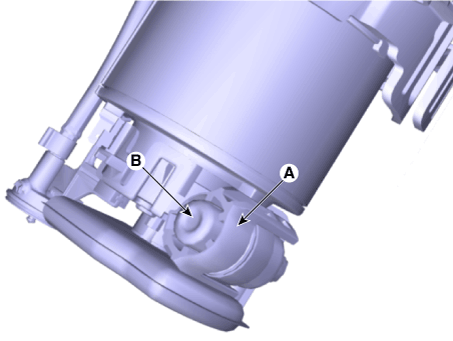

Press the fixing hook (A) with a driver and then remove fuel sender (B) in the arrow direction.

Hyundai Venue. Fuel Pressure Regulator. Repair procedures

4.

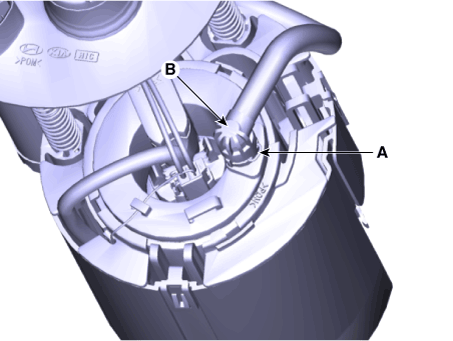

Remove the fuel feed tube quick-connector (B) after releasing the fixing clip (A).

Hyundai Venue. Fuel Pressure Regulator. Repair procedures

5.

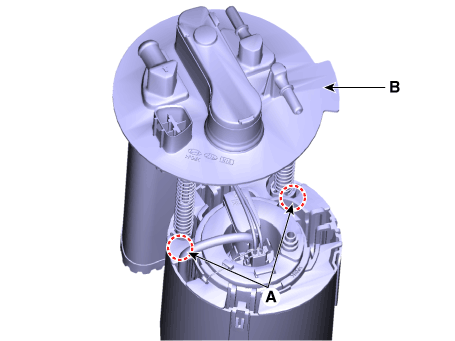

Remove the head assembly (B) after releasing the fixing hooks (A).

Hyundai Venue. Fuel Pressure Regulator. Repair procedures

6.

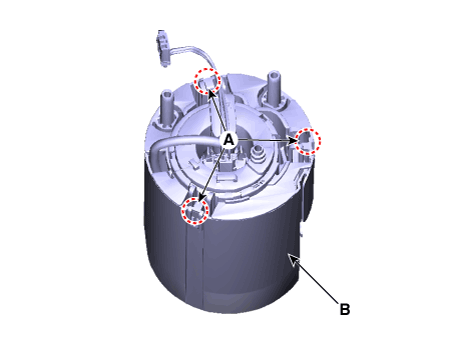

Remove the reservoir-cup (B) after releasing the fixing hooks (A).

Hyundai Venue. Fuel Pressure Regulator. Repair procedures

7.
Disconnect the fuel pump motor connector (A).
8.
Disconnect the ground cable (B).

Hyundai Venue. Fuel Pressure Regulator. Repair procedures

9.

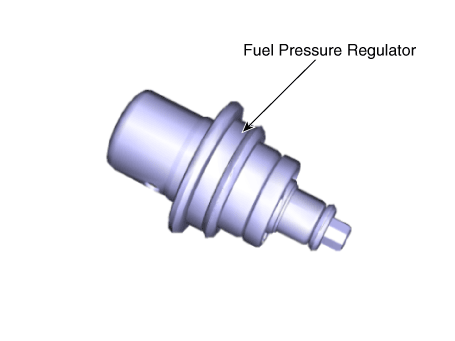

Release the fixing hooks (A) and then remove fuel pressure regulator (B).

Hyundai Venue. Fuel Pressure Regulator. Repair procedures

Hyundai Venue. Fuel Pressure Regulator. Repair procedures

Installation
1.
Installation is reverse of removal.

    Fuel Sender. Repair procedures
