Hyundai Venue: Lighting System / Head Lamps. Repair procedures

Hyundai Venue (QX) (2020-2022) Service Manual / Body Electrical System / Lighting System / Head Lamps. Repair procedures

Removal
Hyundai Venue. Head Lamps. Repair procedures
Head lamps become very hot during use; do not touch them or any attaching hardware immediately after they have been turned off.
Hyundai Venue. Head Lamps. Repair procedures
The headlamp bulb should not be removed from the headlamp assembly until just before a new bulb is installed.
Removing bulb for an extended period of time may affect headlamp bulb performance.
Contaminants may enter the headlamp assembly where they can settle on the lens and reflector.
Never turn on the head lamps with the bulb removed from the headlamp assembly.
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front bumper cover.
(Refer to Body - "Front Bumper Cover")
3.
Remove the turn signal lamp.
(Refer to Lighting System - "Turn Signal Lamp")
4.

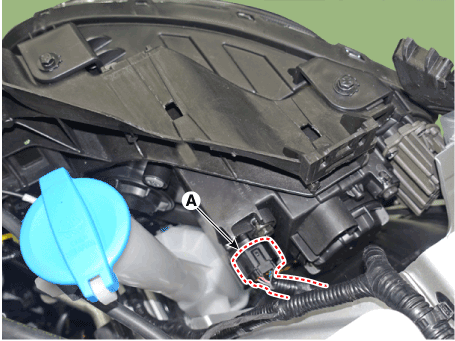

Disconnect the lamp connector (A) from the head lamp assembly.

Hyundai Venue. Head Lamps. Repair procedures

5.

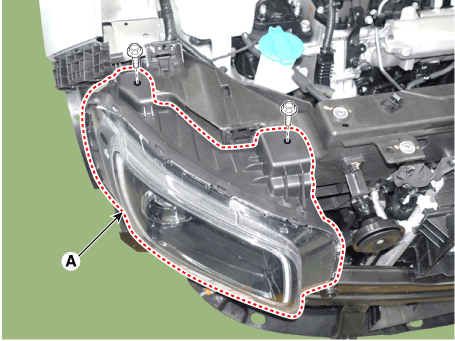

Remove the head lamp assembly (A) after loosening the mounting bolts.

Hyundai Venue. Head Lamps. Repair procedures

Hyundai Venue. Head Lamps. Repair procedures
Take care that retaining clip is not to be damaged.
Installation
1.
Install the head lamp bulbs.
2.
Reassemble the head lamp bulb covers.
3.
Reassemble the head lamp assembly after connecting the lamp connector.
Replacement
Static bending light (SBL)
1.
Turn the head lamp switch off.
2.
Disconnect the power connector from the lamp.
3.
Remove the dust cap (A) after turning the dust cap counterclockwise.

Hyundai Venue. Head Lamps. Repair procedures

4.

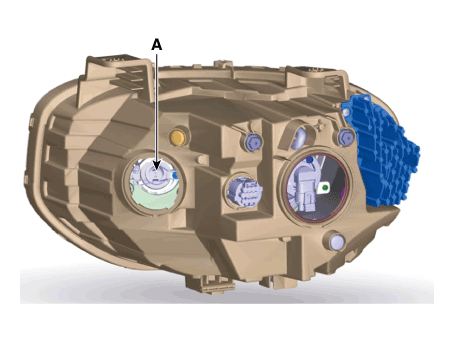

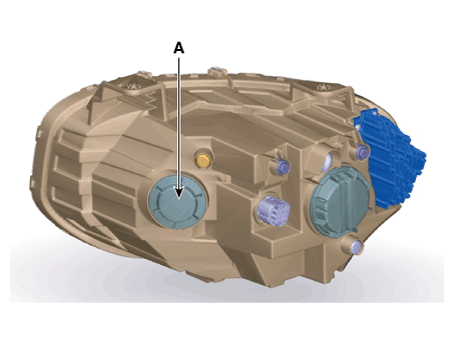

Remove the static bending lignt bulb (A) after disconnecting the connector (B).

Hyundai Venue. Head Lamps. Repair procedures

5.
Installation is the reverse of removal.
[Moisture absorbent of the head lamp]
Hyundai Venue. Head Lamps. Repair procedures
- After the testing of moisture, replace if necessary.

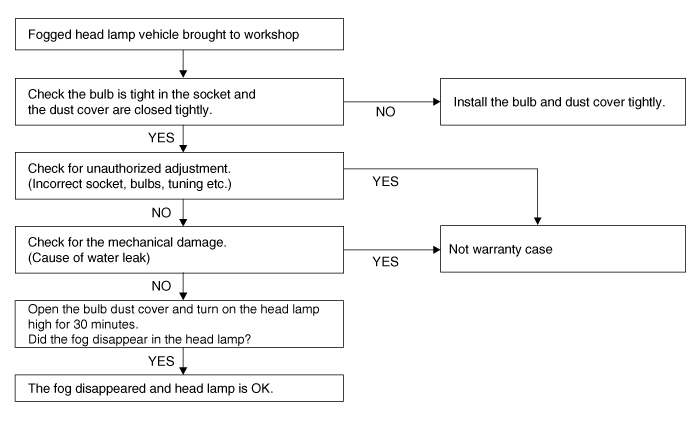

Testing of moisture
Start the engine , turn on the head lamp and open the dust cover.
If there is moisture after 30 minutes, replace the moisture absorbent .
1.

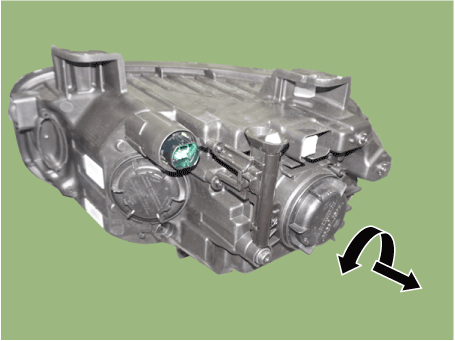

Turn and open the head lamp cover counterclockwise, as shown in the figure.
Head lamp cover(Low/High beam)

Hyundai Venue. Head Lamps. Repair procedures

2.
Unfasten the 2 screws on the low beam and high beam head lamp cover bracket, separate the head lamp cover bracket (A), and then replace the moisture-absorbing agent (B).
[High Beam]

Hyundai Venue. Head Lamps. Repair procedures

Hyundai Venue. Head Lamps. Repair procedures
Grasp the moisture absorbent and form a round shape.
Do not insert the moisture absorbent folded.
Correct
Incorrect

Hyundai Venue. Head Lamps. Repair procedures

Hyundai Venue. Head Lamps. Repair procedures

Hyundai Venue. Head Lamps. Repair procedures

Hyundai Venue. Head Lamps. Repair procedures


Be careful to ensure that the moisture absorbent packaging is not damaged when fastening the screws.
Head Lamp Aiming Instructions
The head lamps should be aimed with the proper beam-setting equipment, and in accordance with the equipment manufacturer's instructions.
Hyundai Venue. Head Lamps. Repair procedures
If there are any regulations pertinent to the aiming of head lamps in the area where the vehicle is to be used, adjust so as to meet those requirements.
Alternately turn the adjusting gear to adjust the head lamp aiming. If beam-setting equipment is not available, proceed as follows:
1.
Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare tire, and tools.
2.
The vehicle should be placed on a flat floor.
3.

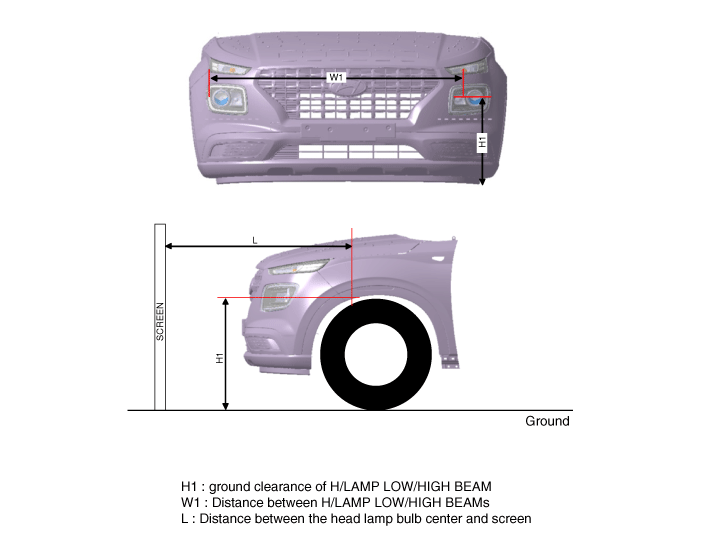

Draw vertical lines (Vertical lines passing through respective head lamp centers) and a horizontal line (Horizontal line passing through center of head lamps) on the screen.
4.
With the head lamp and battery in normal condition, aim the head lamps so the brightest portion falls on the horizontal and vertical lines.

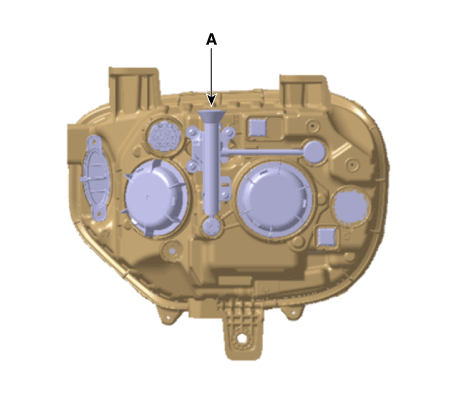

A : Low/High Aiming

Hyundai Venue. Head Lamps. Repair procedures

Head Lamp and Fog Lamp Aiming Point

Hyundai Venue. Head Lamps. Repair procedures

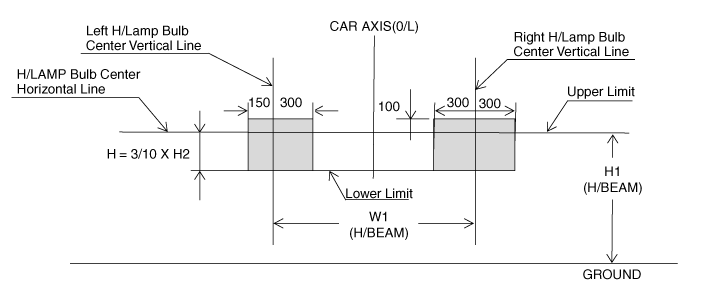

Low & High Beam

Hyundai Venue. Head Lamps. Repair procedures

1.
Head Lamp (Low beam)
Turn the low beam on without driver aboard.

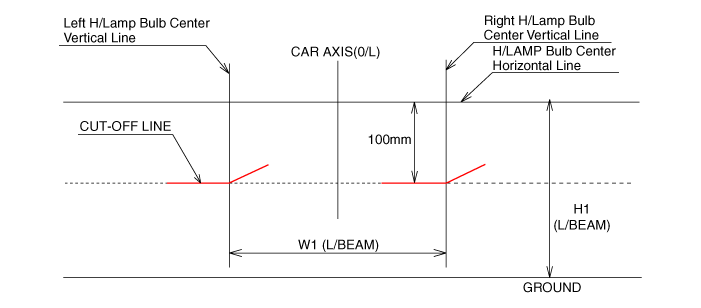

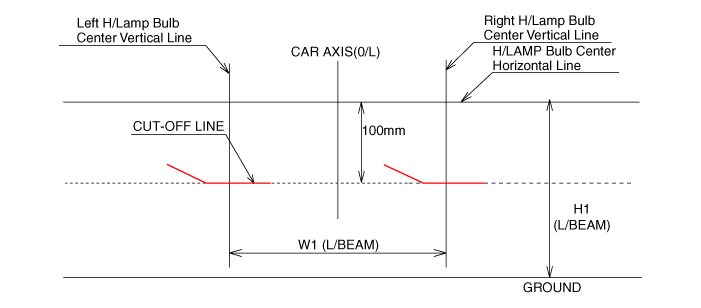

The cut-off line should be projected in the cut-off line shown in the picture.
When aiming the low beam, vertical aiming shuld be adjusted after adjusting the horizontal aiming.
If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
[LHD]

Hyundai Venue. Head Lamps. Repair procedures

[RHD]

Hyundai Venue. Head Lamps. Repair procedures

2.
Turn the front fog lamp on without the driver aboard.
The cut-off line should be projected in the allowable range (shaded region)

Hyundai Venue. Head Lamps. Repair procedures

Hyundai Venue. Head Lamps. Repair procedures
