Hyundai Venue: Lighting System / Room Lamp. Repair procedures

Hyundai Venue (QX) (2020-2022) Service Manual / Body Electrical System / Lighting System / Room Lamp. Repair procedures

Removal
[Room Lamp]
1.
Disconnect the negative (-) battery terminal.
2.

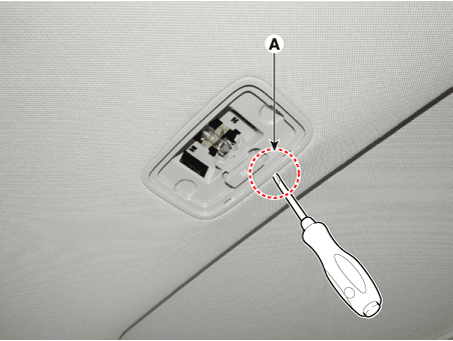

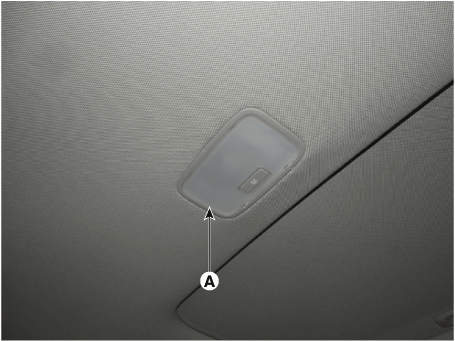

Using a screwdriver or remover, Separate the room lamp lens (A) from the room lamp.
Hyundai Venue. Room Lamp. Repair procedures
•
Put on gloves to prevent hand injuries.
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Hyundai Venue. Room Lamp. Repair procedures
3.

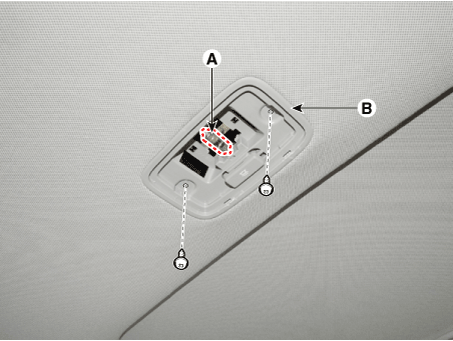

If it is necessary to replace the bulb, remove the bulb (A) after disengaging the room lamp lens.
4.
Disengage the room lamp (B) after loosening the mounting screws.

Hyundai Venue. Room Lamp. Repair procedures

Hyundai Venue. Room Lamp. Repair procedures
•
When removing the room lamp, be careful of the direction in which the tool is inserted.
•
Use caution when inserting the tool in the opposite direction, as the room lamp is damaged.

Hyundai Venue. Room Lamp. Repair procedures
5.

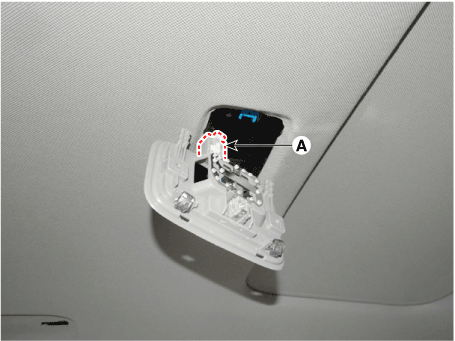

Remove the room lamp assembly after disconnect the room lamp connector (A).

Hyundai Venue. Room Lamp. Repair procedures
Installation
[Room Lamp]
1.
Install the room lamp after connect the connector.
2.
Install the room lamp lens
3.
Connect the negative (-) battery terminal.
