Hyundai Venue: Front Seat Belt / Height Adjust. Repair procedures

Hyundai Venue (QX) (2020-2024) Service Manual / Body (Interior and Exterior) / Front Seat Belt / Height Adjust. Repair procedures

Replacement
1.
Remove the front seat belt upper anchor.
(Refer to Front Seat Belt - "Front Seat Belt Pretensioner")
2.

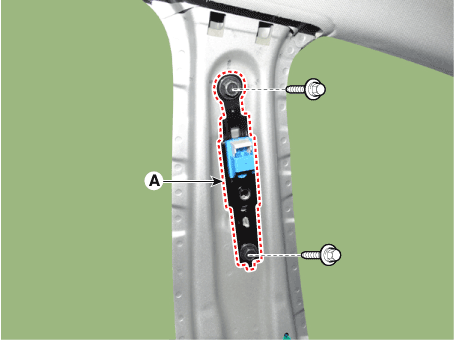

After loosening the mounting bolts, then remove the height adjust (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

Hyundai Venue. Height Adjust. Repair procedures

3.
To install, reverse removal procedure.
