Hyundai Venue: Automatic Transaxle Control System / Inhibitor Switch. Description and operation

Hyundai Venue (QX) (2020-2025) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Inhibitor Switch. Description and operation

Description

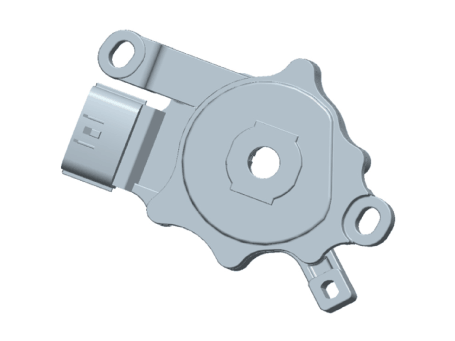

The inhibitor switch mounted on the upper of transaxle and connected with shifter lever.
The inhibitor switch has four points of contact and it makes the signals(S1, S2, S3, S4).
The inhibitor switch signals delivered at the TCM according to control of the shift lever positions(P, R, N, D) and it is used to control of the gear setting.
