Hyundai Venue. Instrument panel vents

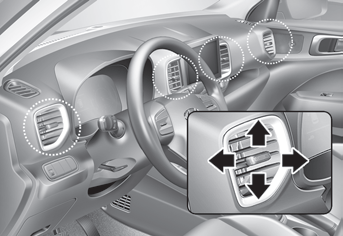

The instrument panel vent air flow can be directed up/down or left/right using the vent adjustment lever.

The air flow can also be CLOSED using the vent adjustment lever. The instrument panel air vents are the “clickto- close” type.

To CLOSE the instrument panel vents perform the following:

-- For the driver side vents, slide the vent adjustment lever to the left until it clicks.
-- For the passenger side vents, slide the vent adjustment lever to the right until it clicks.
