Hyundai Venue: Rear Cross-Traffic Collision Warning (RCCW) / Limitations of the system

Hyundai Venue (QX) (2020-2024) Owners Manual / While Driving / Rear Cross-Traffic Collision Warning (RCCW) / Limitations of the system

The driver must be cautious in the below situations because the system may not detect other vehicles or objects in certain circumstances:

  • The vehicle is driven in inclement weather such as heavy rain or snow.
  • The sensor is polluted with rain, snow, mud, etc.
  • The rear bumper where the sensor is located is covered with a foreign object such as a bumper sticker, a bumper guard, a bike rack, etc.
  • The rear bumper is damaged, or the sensor is out of the original default position.
  • The vehicle height gets lower or higher due to heavy loading in a liftgate, abnormal tire pressure, etc.
  • When the temperature of the rear bumper is high.
  • When the sensors are blocked by other vehicles, walls or parking-lot pillars.
  • The vehicle is driven on a curved road.
  • The road pavement (or the peripheral ground) abnormally contains metallic components (i.e. possibly due to subway construction).
  • There is a fixed object near the vehicle, such as a guardrail.
  • While going down or up a steep road where the height of the lane is different.
  • Driving on a narrow road where trees or grass are overgrown.
  • Driving in rural areas where the sensor does not detect another vehicle for an extended period of time.
  • Driving on a wet road.
  • Driving on a road where the guardrail or wall is in double structure.
  • An oversized vehicle is near such as a bus or truck.
  • When another vehicle approaches very closely.
  • When another vehicle passes very quickly.
  • While changing lanes.
  • If the vehicle has started at the same time as the vehicle next to you and has accelerated.
  • When the vehicle in the next lane moves two lanes away from you OR when the vehicle two lanes away moves the lane next to you.
  • A motorcycle or bicycle is near.
  • A flat trailer is near.
  • If there are small objects in the detecting area such as a shopping cart or a baby stroller.
  • If there is a low height vehicle such as a sports car.
  • Temperature is extremely low around the vehicle.

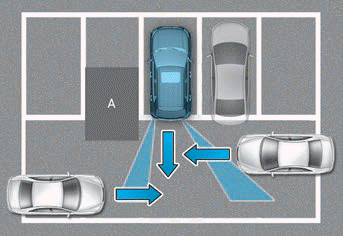

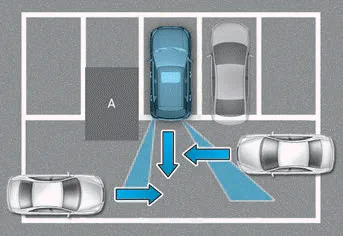

Hyundai Venue. Limitations of the system

[A] : Structure

• Driving where there is a vehicle or structure near

The system may not operate properly when driving where there is a vehicle or structure near.

In certain instances, the system may not detect the vehicle approaching from behind and the warning may not operate properly.

Always pay attention to your surrounding while driving.

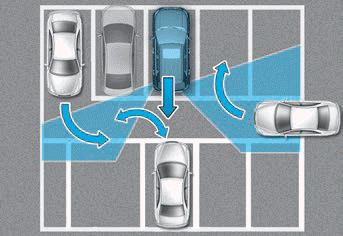

Hyundai Venue. Limitations of the system

• When the vehicle is in a complex parking environment

The system may not operate properly when the vehicle is in a complex parking environment.

In certain instances, the system may not be able to exactly determine the risk of collision for the vehicles which are parking or pulling out near your vehicle (e.g. a vehicle escaping beside your vehicle, a vehicle parking or pulling out in the rear area, a vehicle approaching your vehicle making a turn, etc.).

If this occurs, the warning may not operate properly.

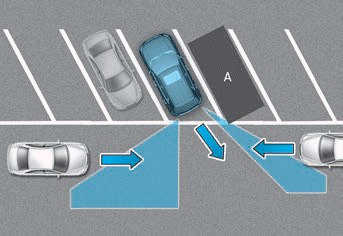

Hyundai Venue. Limitations of the system

[A] : Vehicle

• When the vehicle is parked diagonally

The system may not operate properly when the vehicle is parked diagonally.

In certain instances, when the diagonally parked vehicle is pulled out of the parking space, the system may not detect the vehicle approaching from the rear left/right of your vehicle. In this case, the warning may not operate properly.

Always pay attention to your surrounding while driving.

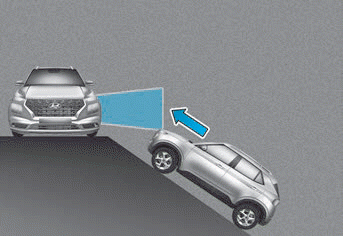

Hyundai Venue. Limitations of the system

• When the vehicle is on/near a slope

The system may not operate properly when the vehicle is on/near a slope.

In certain instances, the system may not detect the vehicle approaching from the rear left/right and the warning may not operate properly.

Always pay attention to your surrounding while driving.

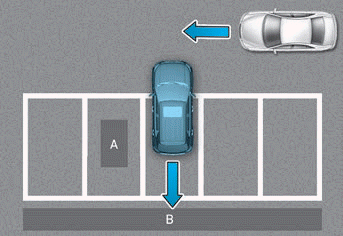

Hyundai Venue. Limitations of the system

[A] : Structure, [B] : Wall

• Pulling into the parking space where there is a structure

The system may not operate properly when pulling in the vehicle to the parking space where there is a structure at the back or side of your vehicle.

In certain instances, when backing into the parking space, the system may not detect the vehicle moving in front of your vehicle. In this case, the warning may not operate properly.

Always pay attention to the parking space while driving.

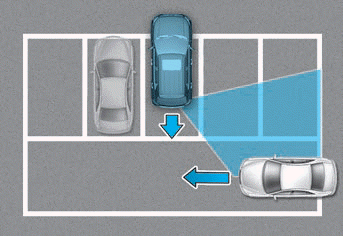

Hyundai Venue. Limitations of the system

• When the vehicle is parked rearward

If the vehicle is parked rearward and the sensor detects the another vehicle in the rear area of the parking space, the system warning may not work properly. Always pay attention to the parking space while driving.

Information

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

    Detecting Sensor

    The rear corner radars are located inside the rear bumper for detecting the side and rear areas. Always keep the rear bumper clean for proper operation of the system...
