Hyundai Venue (QX): Interior Lights / Luggage compartment lamp

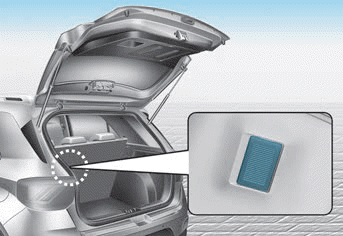

The luggage compartment lamp comes on when the liftgate is opened.
NOTICE
The luggage compartment lamp comes on as long as the liftgate is open.To prevent unnecessary battery system drain, close the liftgate securely after using the luggage compartment.
Type A Type B Rear Room Lamp (): Press this switch to turn the rear room lamp on and off. (1): The room lamp for the rear seats is automatically turned ON for approximately 30 seconds, when a door is opened.
Push the switch to turn the light on or off. : The lamp will turn on if this button is pressed. : The lamp will turn off if this button is pressed.
