Hyundai Venue: While Driving / Manual Transmission

Hyundai Venue (QX) (2020-2022) Owners Manual / While Driving / Manual Transmission

Hyundai Venue. Manual Transmission

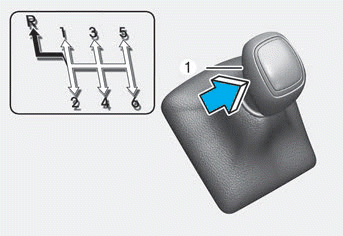

Hyundai Venue. Manual Transmission The shift lever can be moved without pressing the button (1).

Hyundai Venue. Manual TransmissionThe button (1) must be pressed while moving the shift lever to R (Reverse).

Engine Start/Stop Button

Whenever the front door is opened, the Engine Start/Stop button will illuminate and will go off 30 seconds after the door is closed. WARNING To reduce risk of serious injury or death, NEVER allow children or any person who is unfamiliar with the vehicle to touch the Engine Start/Stop button or related parts...

Manual Transmission Operation

The manual transmission has 6 forward gears. The transmission is fully synchronized in all forward gears so shifting to either a higher or a lower gear can be easily accomplished...
